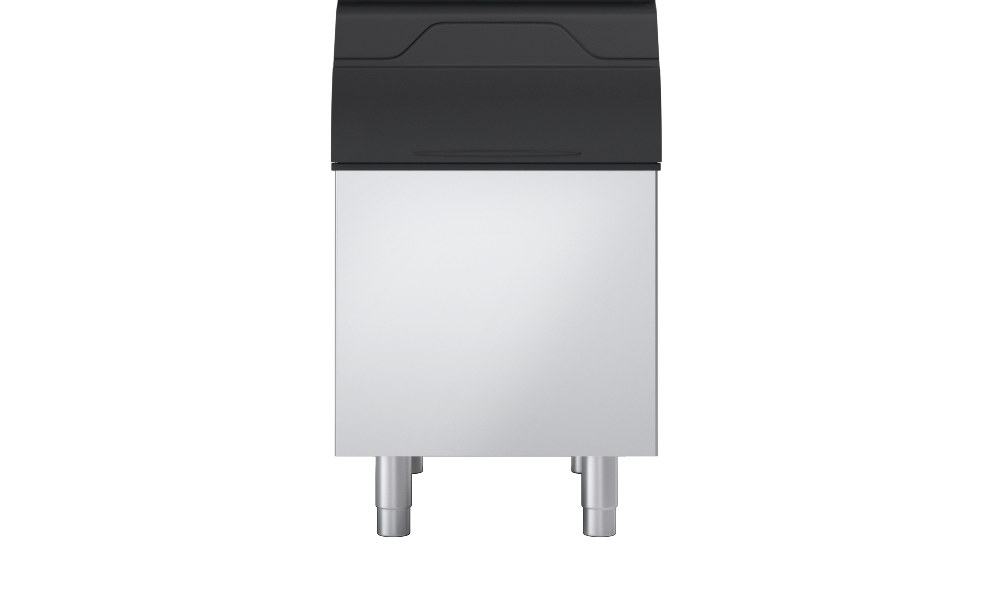

SB105: 100kg Ice Machine Bin

28-103

Modular air cooled ice cuber - bin only

About the product

Foster Ice Machines produce high quality ice, free from impurities.

Available to finance with our award-winning interest-free credit and leasing

Learn more about our Drinks Service range

Take a look inside the G3

Specification

Technical

Current (A)
0

Dimensions

Height (mm)
1048
Width (mm)
568
Depth (mm)
848
Net volume (ltr)
264
Bin Capacity (kg)
100
Leg type
Legs
Gross weight (kg)
50
Net weight (kg)
36

Build

Finish ext/int
S/S
System
Integral

Energy

Bin Capacity (kg)
100

Features and benefits

  • Stainless steel, food safe hygienic finish bin for clean and safe storage of ice
  • Effectively stores ultra cold square cubes to ensure that they last longer in the glass
  • High storage capacity in dedicated storage bins
  • Bin capacity: 100kgs

Product downloads
Download all available product assets. Find user and service manuals here.

Options
Learn more about product options and accessories.

Accessories
Ion clean
Everpure Filter, Cartridge and Head Kit
  • A minimum clearance of 15cm (6") must be left at the sides of the machine for routing cooling air drawn into and exhausted out of the compartment to maintain a proper condensing operation
  • Maximum ambient air temperature 40ºC; maximum input water temperature 35ºC
  • 150mm gap required either side for airflow Water: 3/4” BSP
  • Please remember to include appropriate collar size at the time of your ice machine purchase.
  • Dimension specification refers to overall size of ice maker product including head, collar and bin.
  • Drain: 20mm
  • Ice cubed: 24 x 22 x 22mm

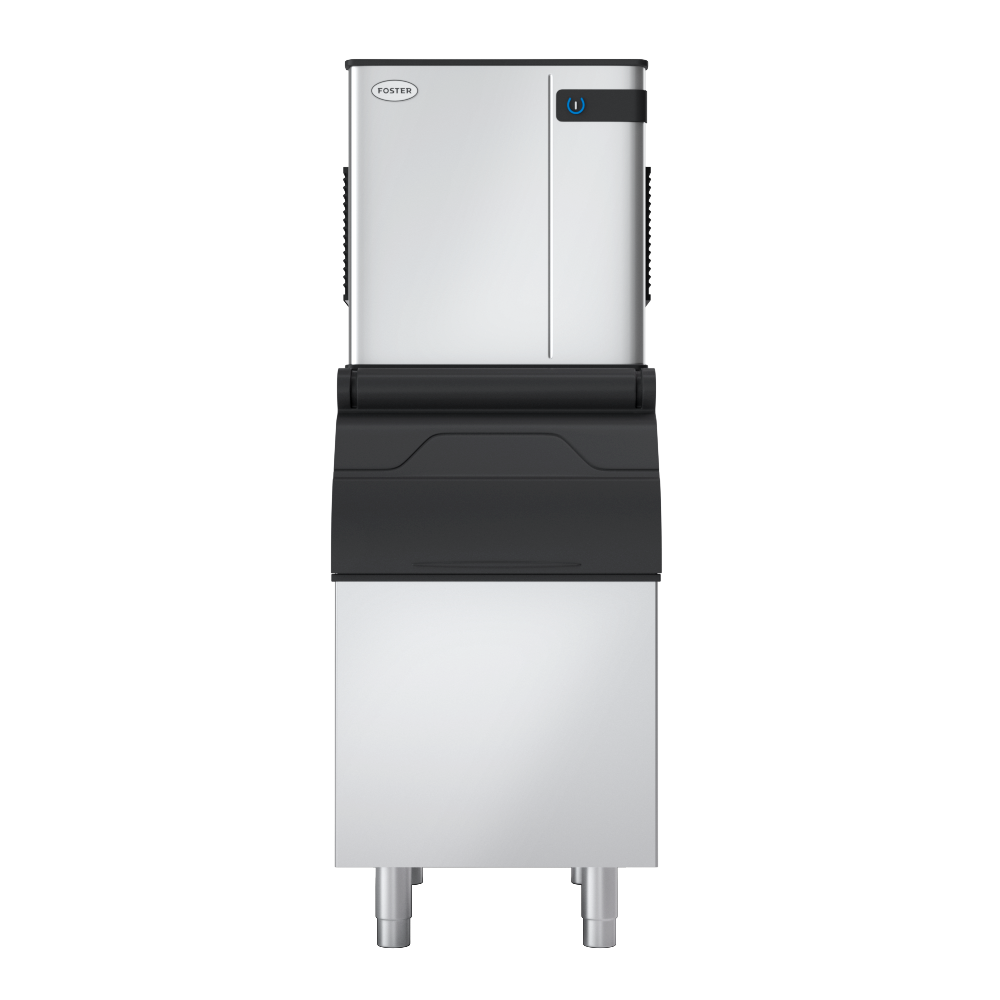

  • SB105 Bin designed to accommodate F132 Ice Machine Head
  • Images gallery includes all configurable head and bin options
