SB205: 150kg Ice Machine Bin
28-109
Modular air cooled ice cuber - bin only
- About the product
-
Foster Ice Machines produce high quality ice, free from impurities.
Available to finance with our award-winning interest-free credit and leasing
Learn more about our Drinks Service range
View our immersive showroom
Specification
Technical
- Current (A)
- 0
Dimensions
- Height (mm)
- 1048
- Width (mm)
- 768
- Depth (mm)
- 848
- Net volume (ltr)
- 368
- Bin Capacity (kg)
- 150
- Leg type
- Legs
- Gross weight (kg)
- 56
- Net weight (kg)
- 43
Build
- Finish ext/int
- S/S
- Section configuration
- System
- Integral
Energy
- Bin Capacity (kg)
- 150
Features and benefits
- Stainless steel, food safe hygienic finish bin for clean and safe storage of ice
- Effectively stores ultra cold square cubes to ensure that they last longer in the glass
- High storage capacity in dedicated storage bins
- KM205/255 collar must be purchased with F132 bin option
Product downloads
Download all available product assets. Find user and service manuals here.
Options
Learn more about product options and accessories.
- Accessories
-
Ion clean
Everpure Filter, Cartridge and Head Kit
Footnotes
-
- A minimum clearance of 15cm (6") must be left at the sides of the machine for routing cooling air drawn into and exhausted out of the compartment to maintain a proper condensing operation
- Maximum ambient air temperature 40ºC; maximum input water temperature 35ºC
- 150mm gap required either side for airflow Water: 3/4” BSP
- Please remember to include appropriate collar size at the time of your ice machine purchase.
- Dimension specification refers to overall size of ice maker product including head, collar and bin.
- Drain: 20mm
- Ice cubed: 24 x 22 x 22mm
- SB205 Bin designed to accommodate F132, F202 and F302 Ice Machine Head

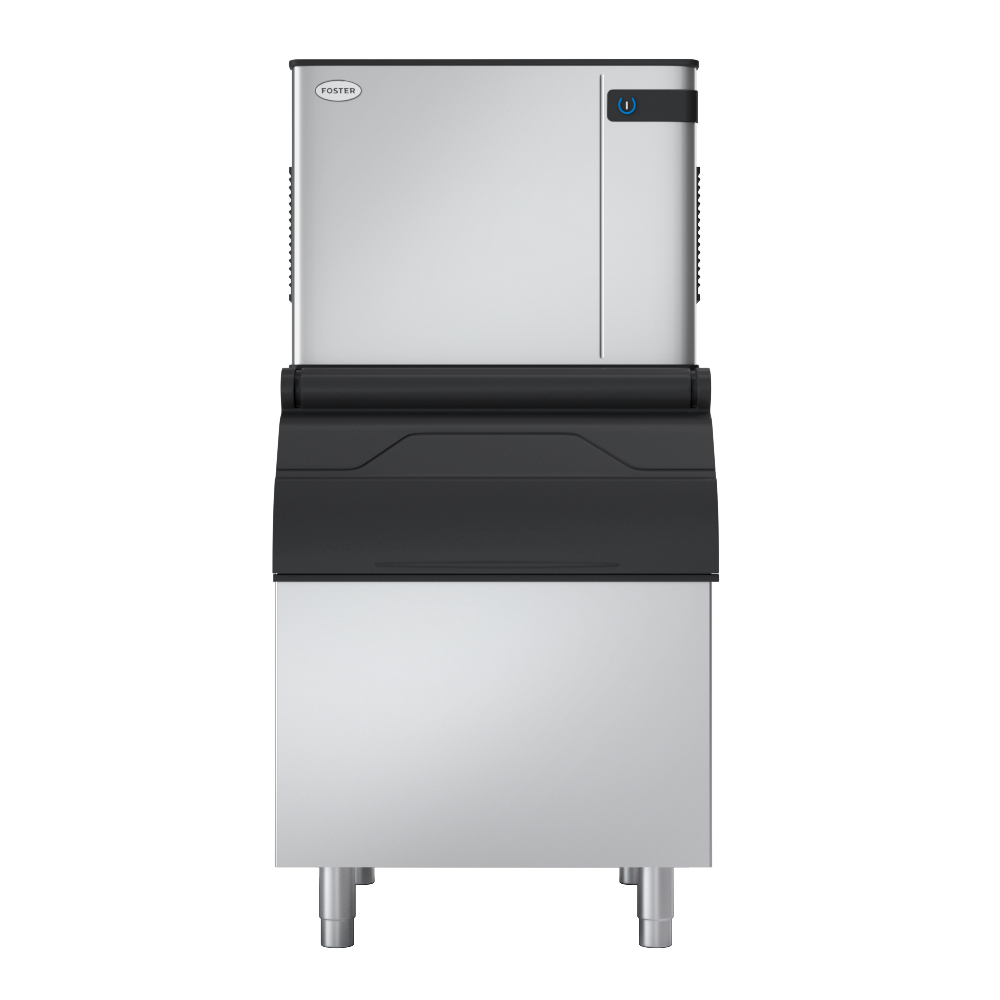

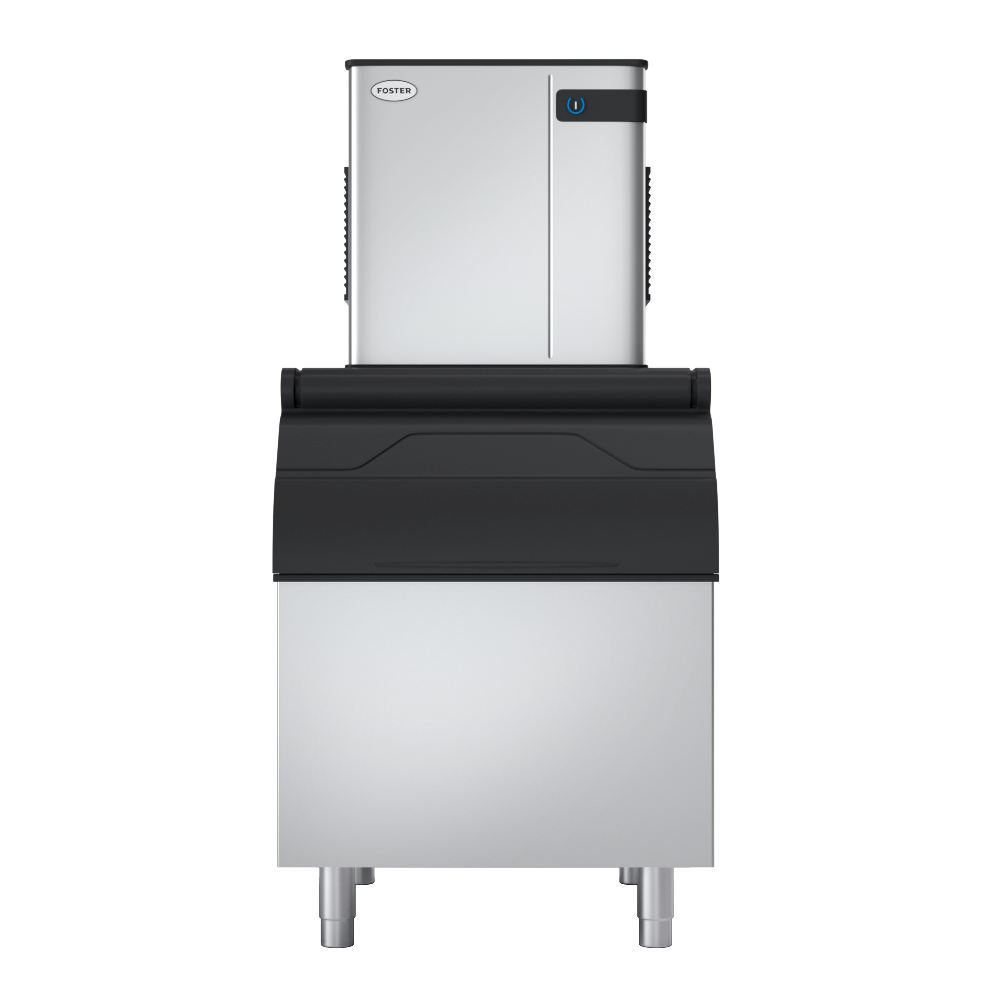

- Images gallery includes all configurable head and bin options
