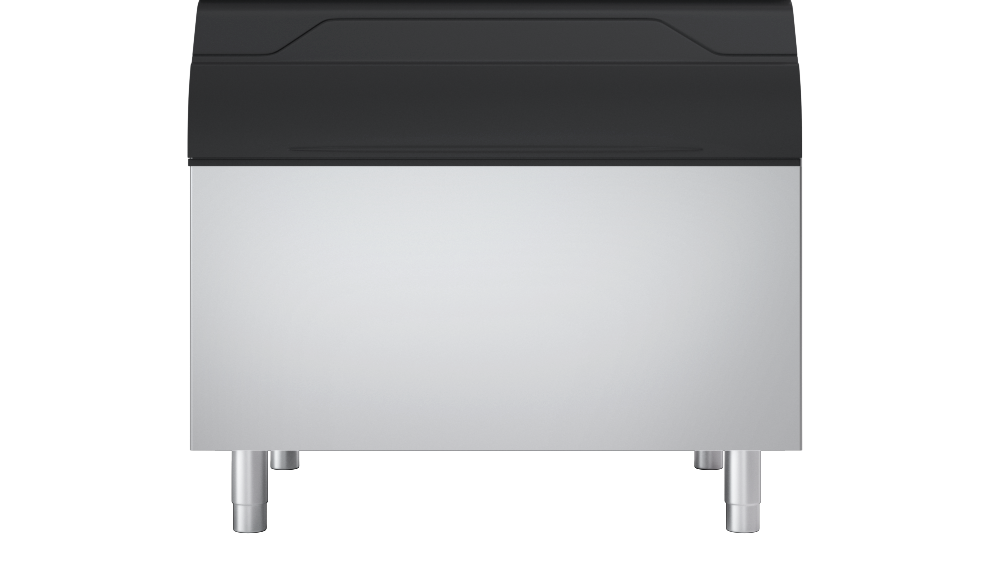

SB305: 210kg Ice Machine Bin

28-112

Modular air cooled ice cuber - bin only

About the product

Foster Ice Machines produce high quality ice, free from impurities.

Available to finance with our award-winning interest-free credit and leasing

Learn more about our Drinks Service range

Take a look inside the G3

Specification

Dimensions

Height (mm)
968
Width (mm)
1081
Depth (mm)
824
Net volume (ltr)
513
Bin Capacity (kg)
210
Leg type
Legs
Gross weight (kg)
63
Net weight (kg)
48

Build

Finish ext/int
S/S
System
Integral

Energy

Bin Capacity (kg)
210

Features and benefits

  • Stainless steel, food safe hygienic finish bin for clean and safe storage of ice
  • Effectively stores ultra cold square cubes to ensure that they last longer in the glass
  • High storage capacity in dedicated storage bins
  • KM305 collar must be purchased with F202 and F302 bin option

Product downloads
Download all available product assets. Find user and service manuals here.

Options
Learn more about product options and accessories.

Accessories
Ion clean
Everpure Filter, Cartridge and Head Kit
  • A minimum clearance of 15cm (6") must be left at the sides of the machine for routing cooling air drawn into and exhausted out of the compartment to maintain a proper condensing operation
  • Maximum ambient air temperature 40ºC; maximum input water temperature 35ºC
  • 150mm gap required either side for airflow Water: 3/4” BSP
  • Please remember to include appropriate collar size at the time of your ice machine purchase.
  • Dimension specification refers to overall size of ice maker product including head, collar and bin.
  • Drain: 20mm
  • Ice cubed: 24 x 22 x 22mm
  • SB305 Bin designed to accommodate F202 and F302 Ice Machine Head

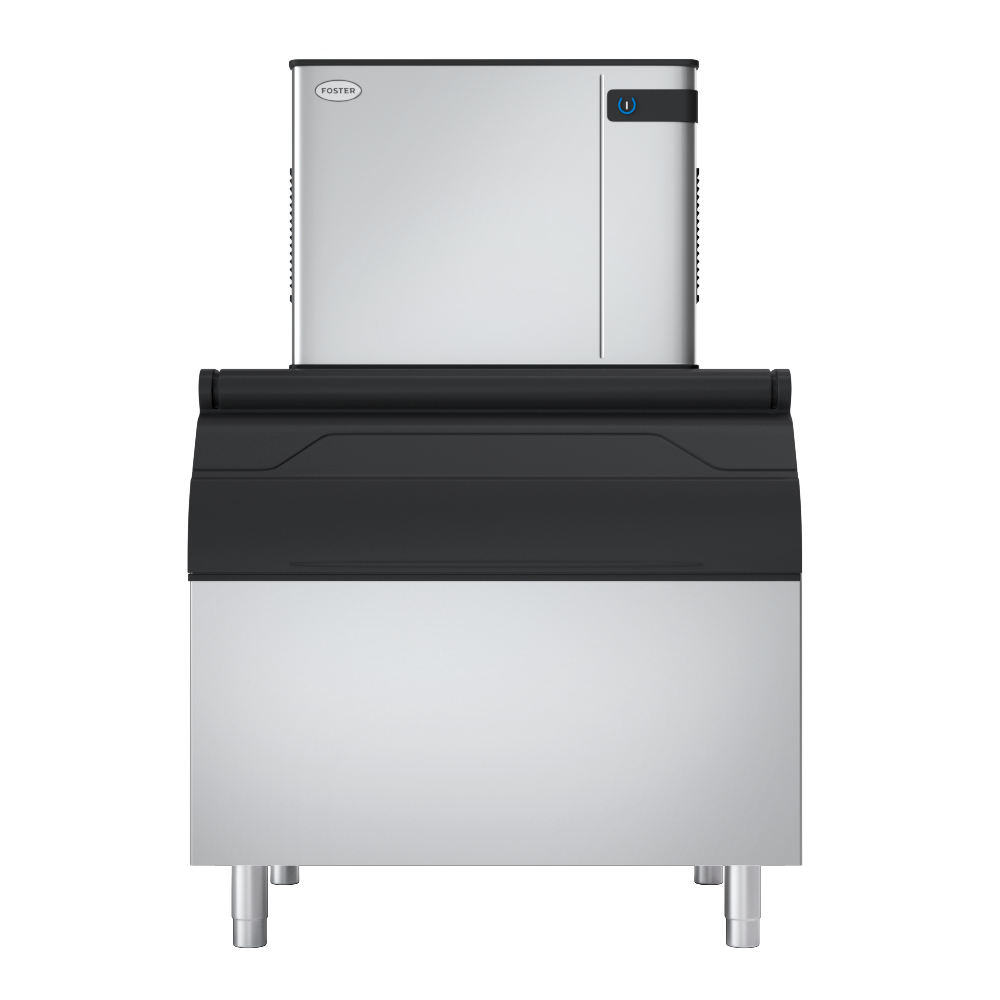

  • Images gallery includes all configurable head and bin options
