F202: 220kg Air Cooled Ice Cuber

28-128

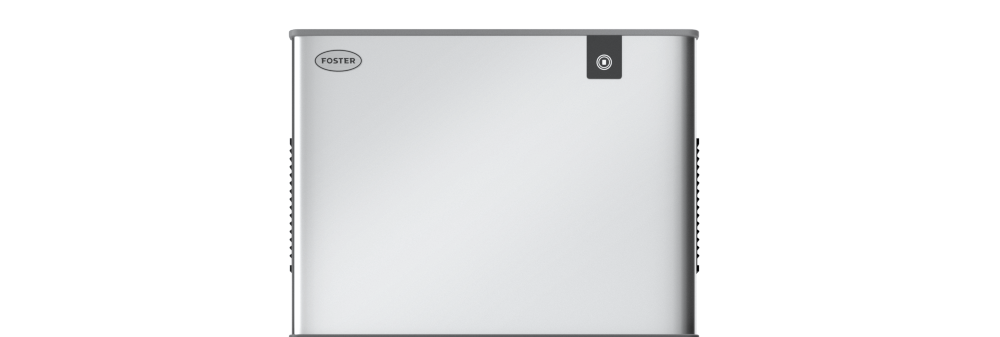

Modular air cooled ice cuber - head only

About the product

Foster Ice Machines produce high quality ice, free from impurities.

Available to finance with our award-winning interest-free credit and leasing

Learn more about our Drinks Service range

Take a look inside the G3

Specification

Technical

Refrigerant
R290
Electrical supply
220-240/50/1
Fuse rating (A)
16
Current (A)
5.2
Power (W)
1100
Refrigerant mass (g)
149

Dimensions

Height (mm)
575
Width (mm)
760
Depth (mm)
620
Gross weight (kg)
85
Net weight (kg)
70

Build

Finish ext/int
S/S
System
Machine Unit

Energy

Climate Class
5
AEC (kWh)
8210.31
GWP
3
Energy consumption (kWh/24hr)
22.494

Features and benefits

  • Innovatively designed with new user-friendly electro-mechanical controls to ensure reliability
  • Ice machine head only
  • Hygienic food safe production of ice ensure ice can be enjoyed by consumer
  • Provides 220kg per 24hrs of quality, clear ice.

  • A minimum clearance of 15cm (6") must be left at the sides of the machine for routing cooling air drawn into and exhausted out of the compartment to maintain a proper condensing operation
  • Maximum ambient air temperature 40ºC; maximum input water temperature 35ºC
  • 150mm gap required either side for airflow Water: 3/4” BSP
  • Please remember to include appropriate collar size at the time of your ice machine purchase.
  • Dimension specification refers to overall size of ice maker product including head, collar and bin.
  • Drain: 20mm
  • Ice cubed: 24 x 22 x 22mm
  • SB205 Bin designed to accommodate F132, F202 and F302 Ice Machine Head

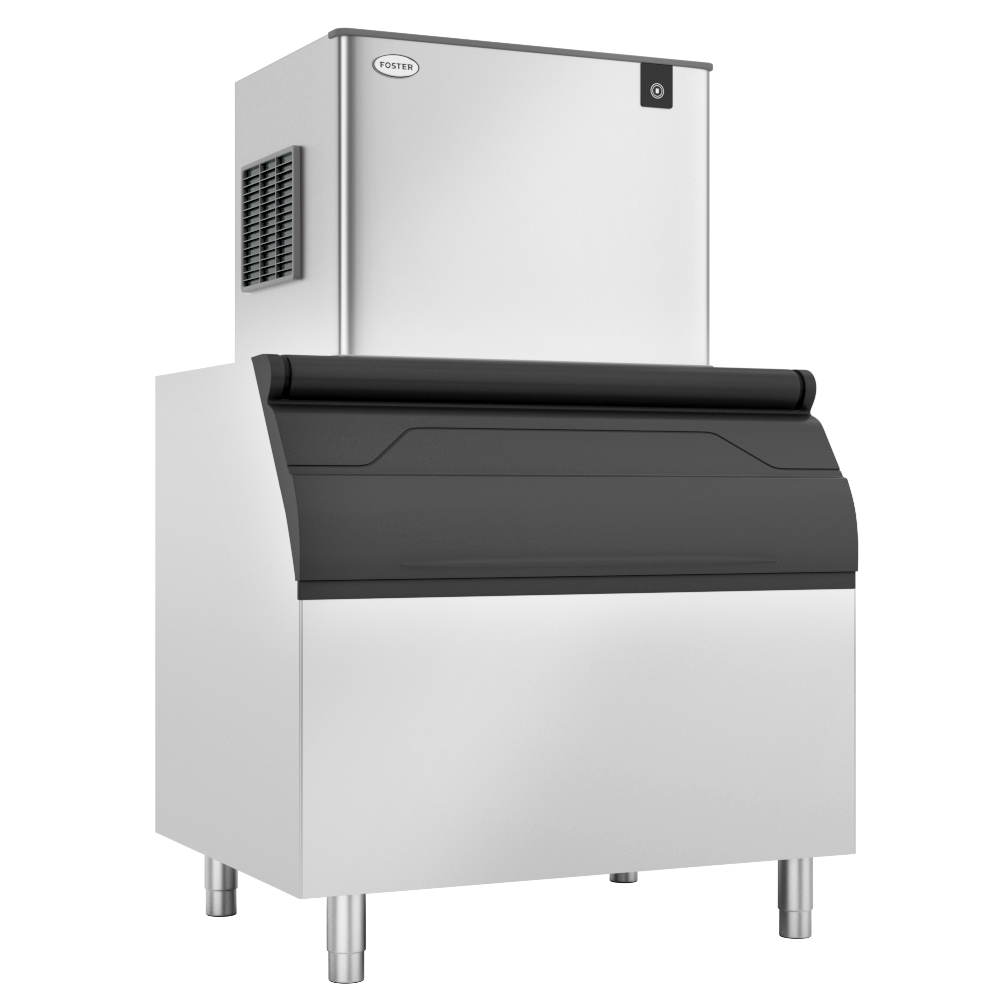

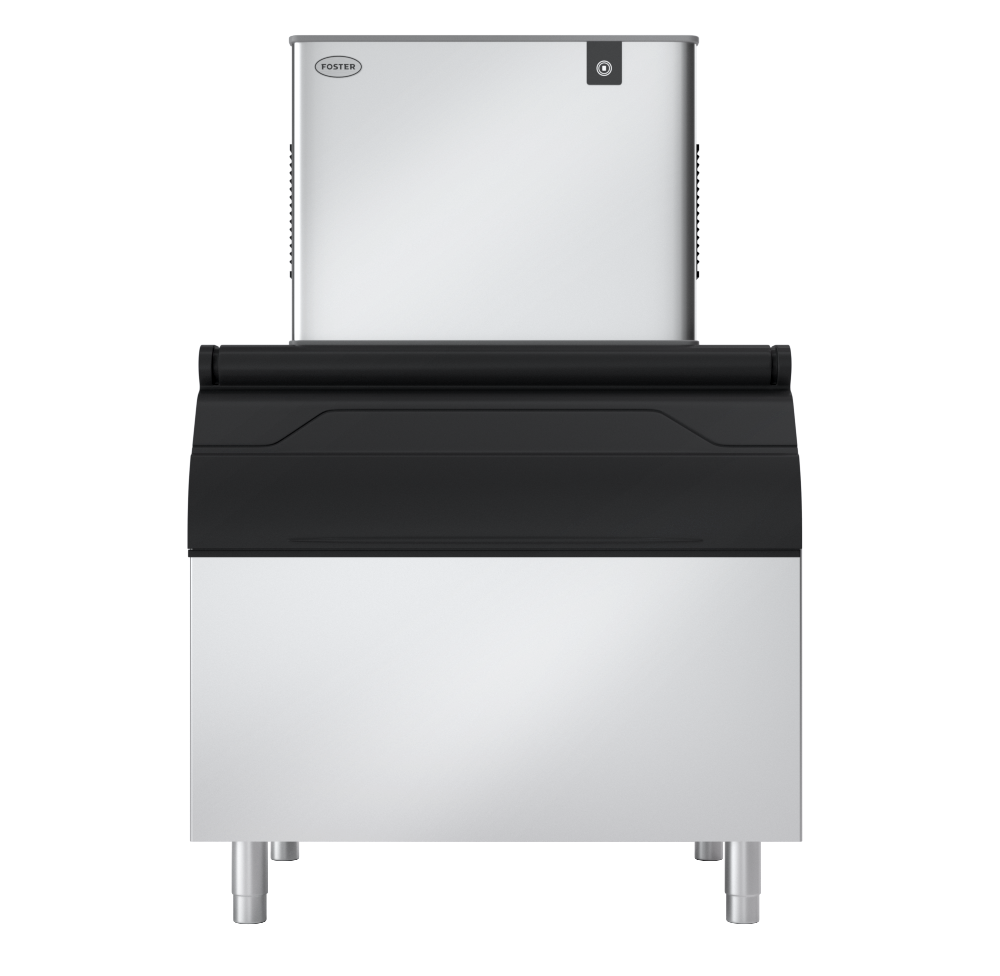

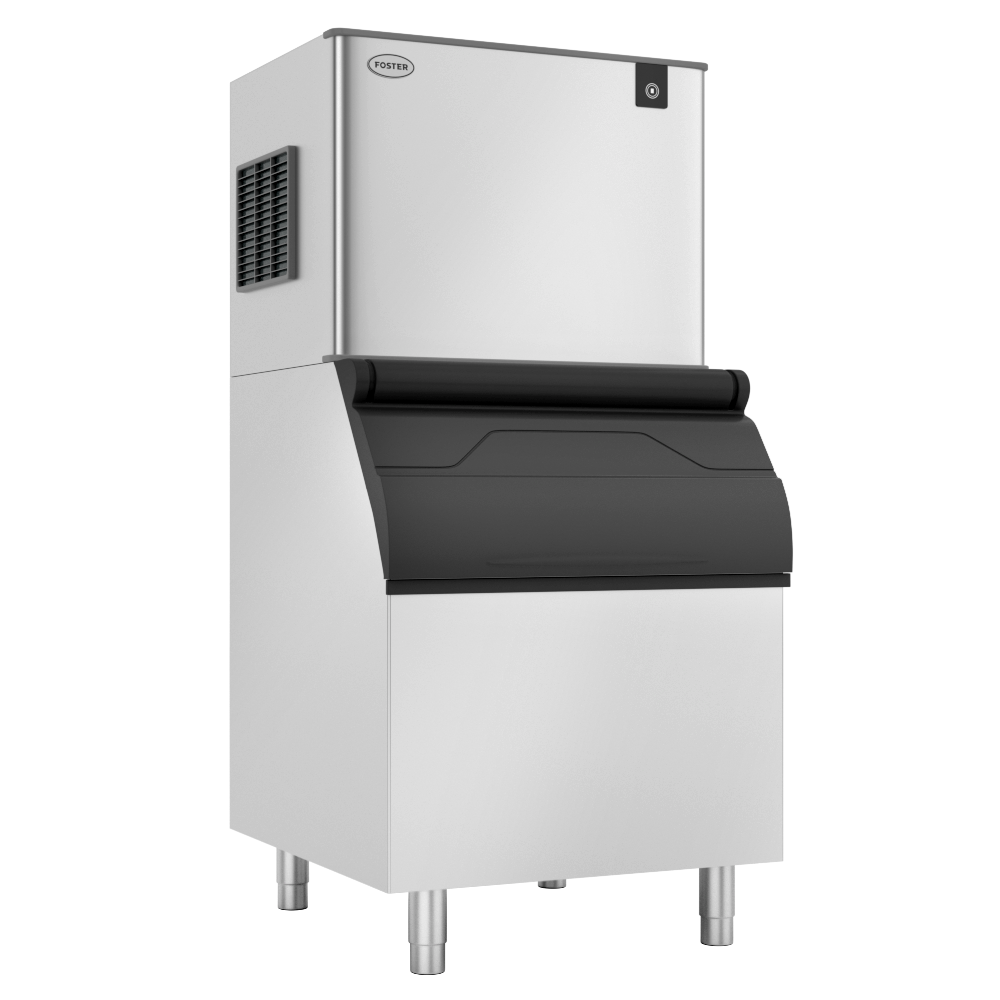

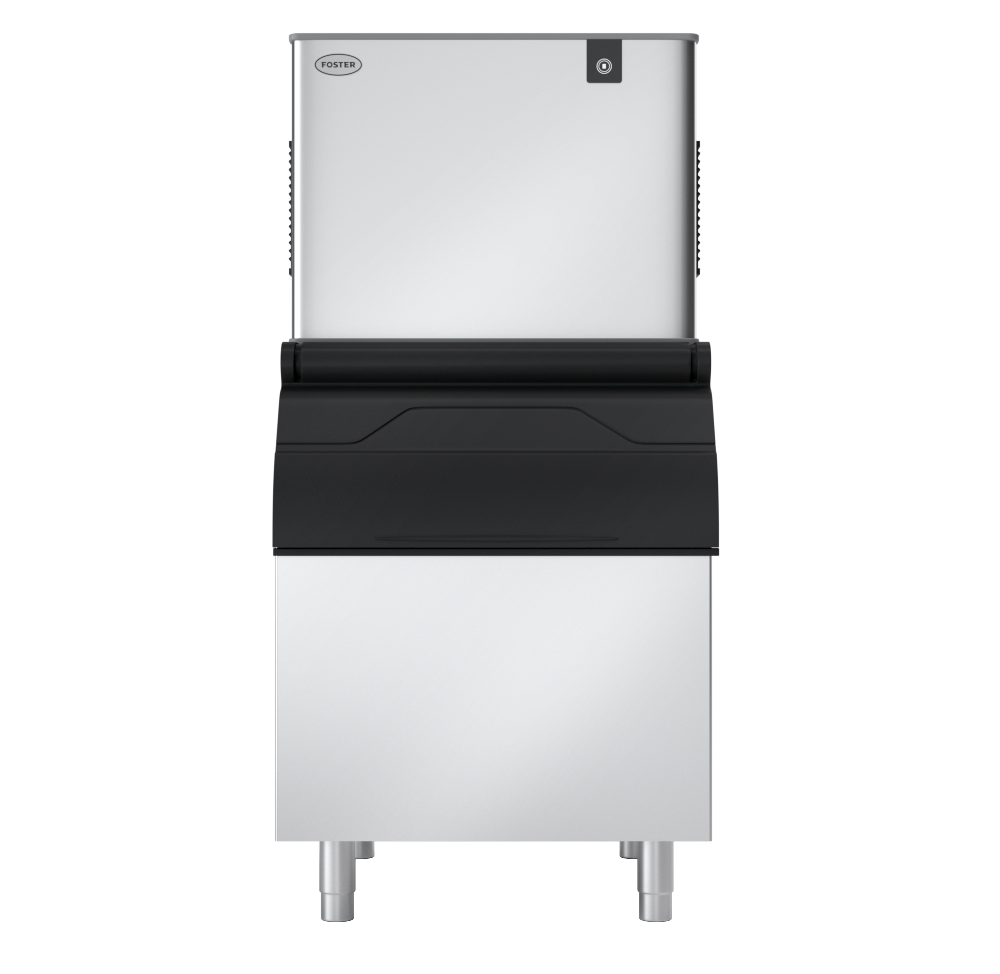

  • Image gallery includes all configurable head and bin options
