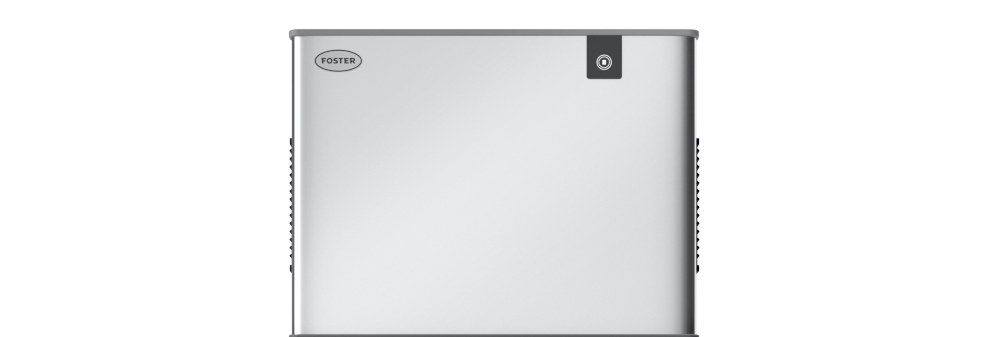

F302: 290kg Air Cooled Ice Cuber

28-129
Modular air cooled ice cuber - head only

About the product

Foster Ice Machines produce high quality ice, free from impurities.

Available to finance with our award-winning interest-free credit and leasing

Learn more about our Drinks Service range

Take a look inside the G3

Specification

Technical

Refrigerant
R290
Electrical supply
220-240/50/1
Fuse rating (A)
16
Current (A)
7.7
Power (W)
1400
Refrigerant mass (g)
150

Dimensions

Height (mm)
575
Width (mm)
760
Depth (mm)
620
Gross weight (kg)
86
Net weight (kg)
55

Build

Finish ext/int
S/S
System
Machine Unit

Energy

Climate Class
5
AEC (kWh)
9272.46
GWP
3
Energy consumption (kWh/24hr)
25.404

Features and benefits

  • Innovatively designed with new user-friendly electro-mechanical controls to ensure reliability
  • Ice machine head only
  • Hygienic food safe production of ice ensure ice can be enjoyed by consumer
  • Provides 290kg per 24hrs of quality, clear ice.

Product downloads
Download all available product assets. Find user and service manuals here.

  • A minimum clearance of 15cm (6") must be left at the sides of the machine for routing cooling air drawn into and exhausted out of the compartment to maintain a proper condensing operation
  • Maximum ambient air temperature 40ºC; maximum input water temperature 35ºC
  • 150mm gap required either side for airflow Water: 3/4” BSP
  • Please remember to include appropriate collar size at the time of your ice machine purchase.
  • Dimension specification refers to overall size of ice maker product including head, collar and bin.
  • Drain: 20mm
  • Ice cubed: 24 x 22 x 22mm

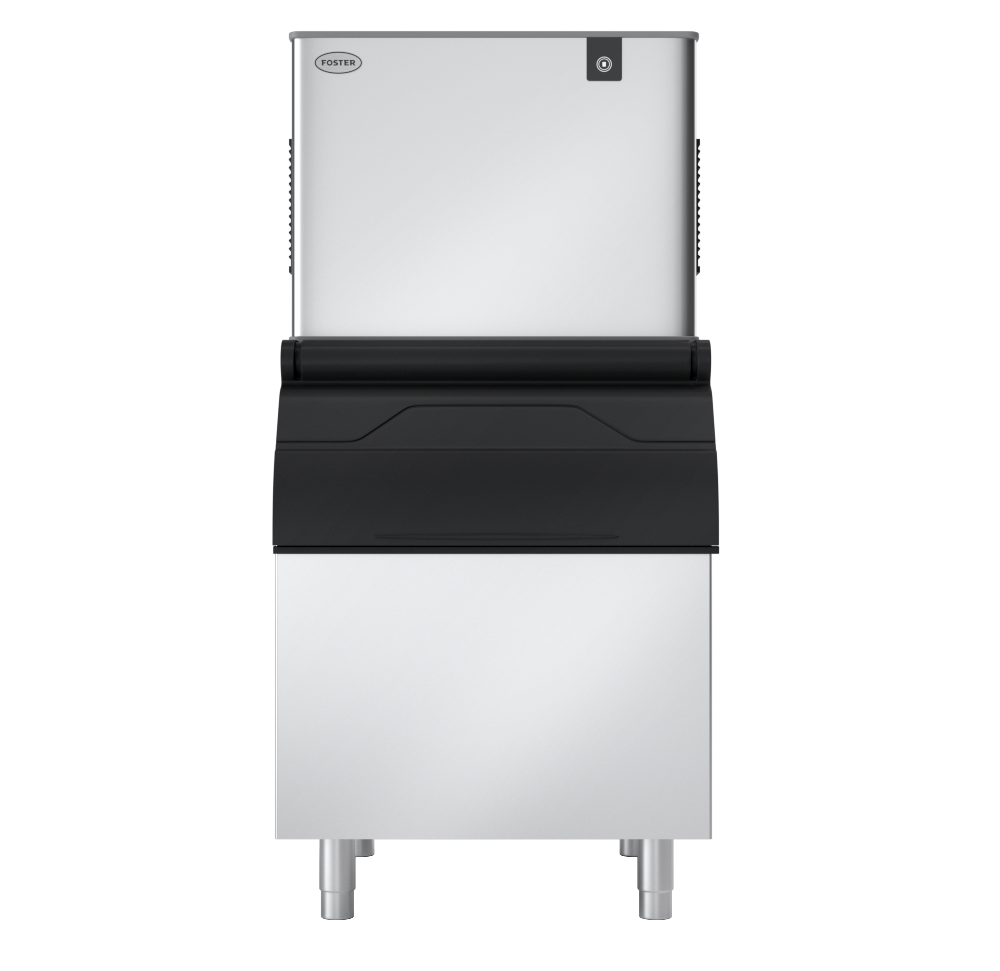

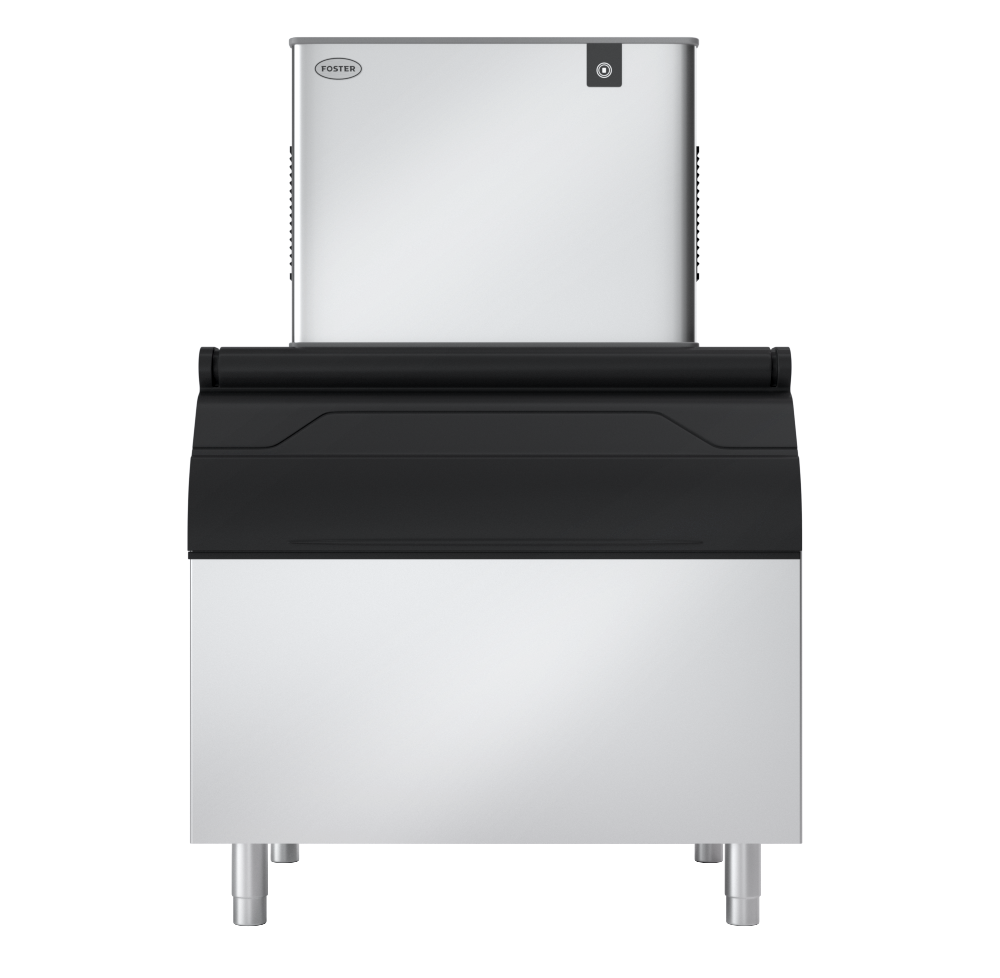

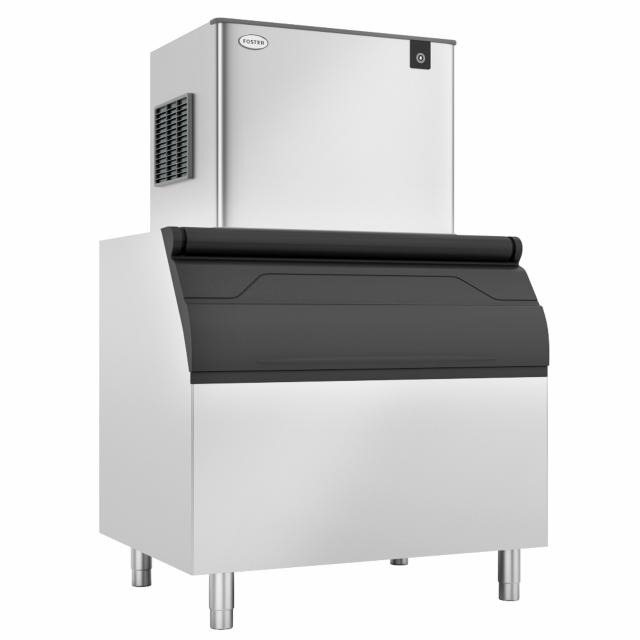

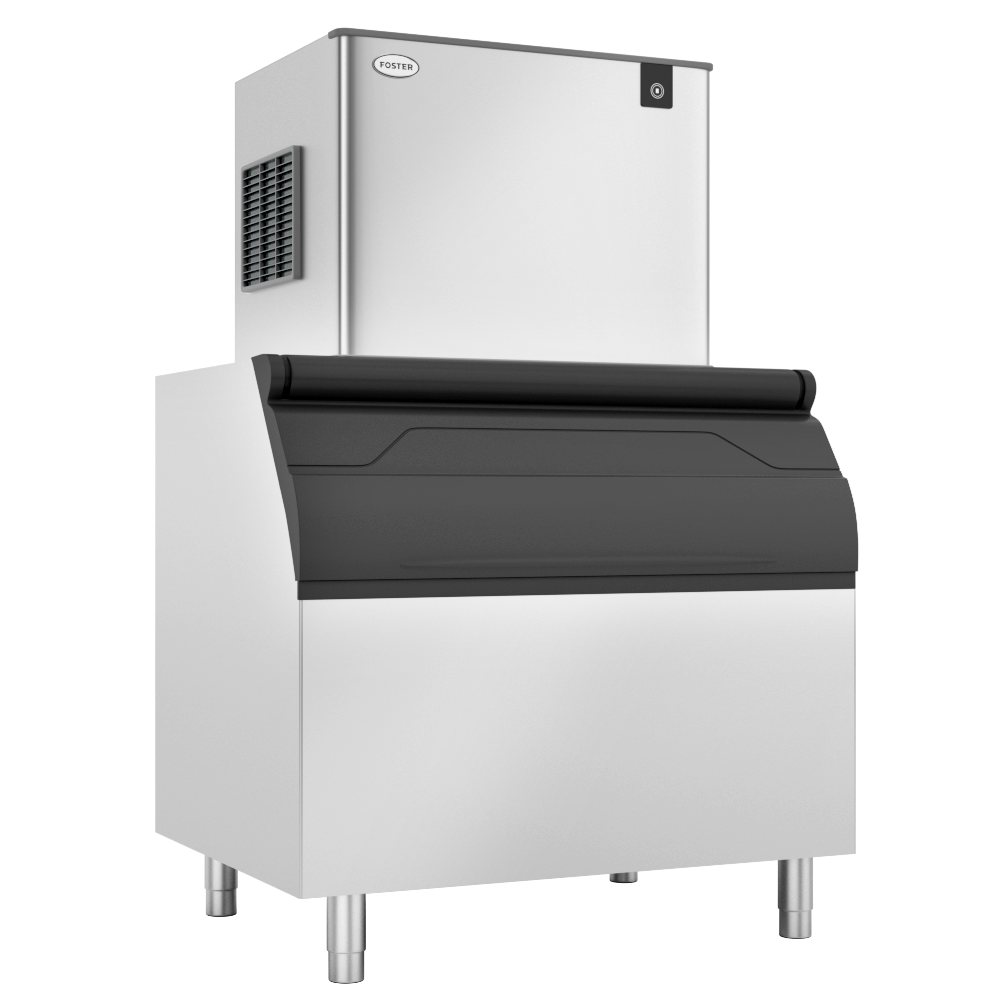

  • Images gallery includes all configurable head and bin options
