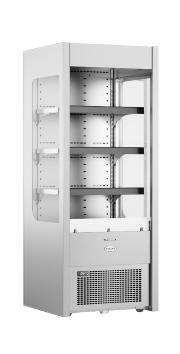

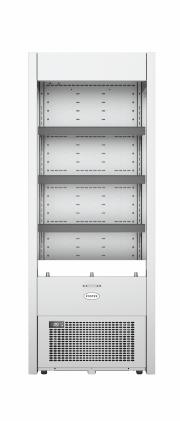

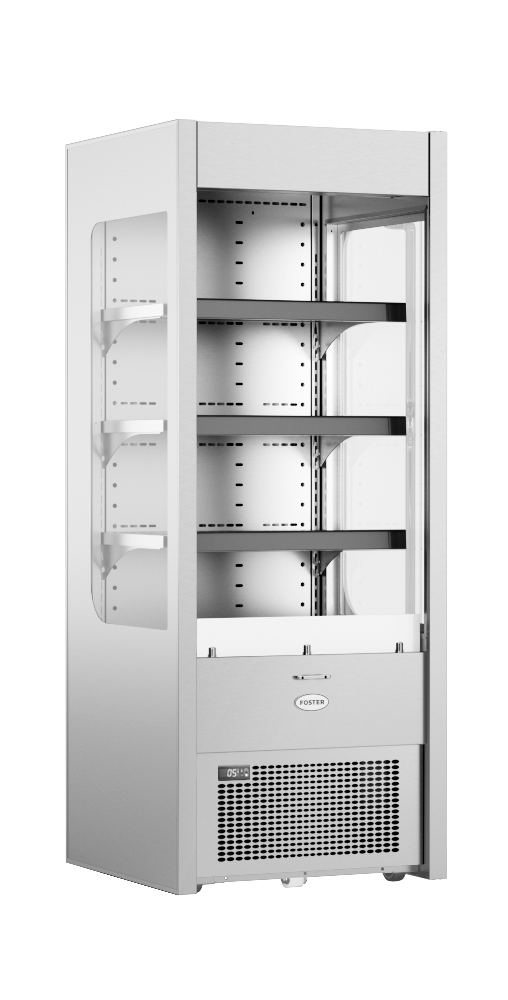

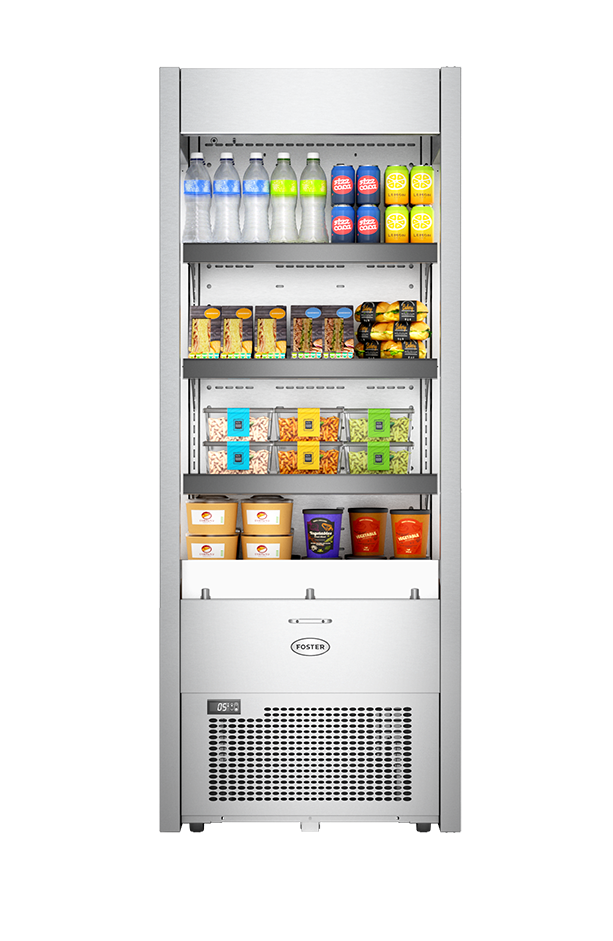

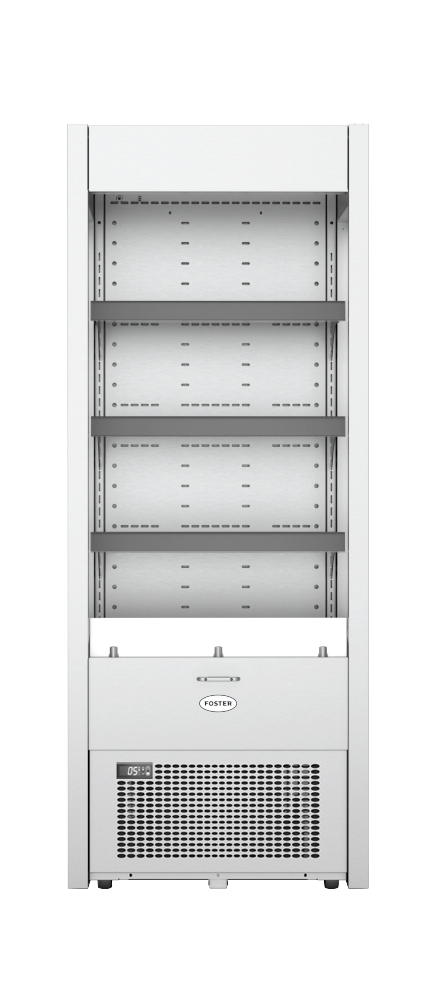

FMSLIM700NG: 253 Ltr Slim Multideck

18-143

Slimline 700mm multideck with night blind and glass end panels

About the product

Allowing the biggest capacity from the smallest possible footprint, the Slim Multideck displays your products beautifully.

Available to finance with our award-winning interest-free credit and leasing

Learn more about our Multideck range

Take a look at the multideck



Specification

Technical

Refrigerant
R290
Temperature
Display -1/+7°C
Electrical supply
230/50/1
Fuse rating (A)
10
Current (A)
5
Power (W)
1050
Refrigerant mass (g)
150
Thermal heat rejection (W)
800

Dimensions

Height (mm)
1780
Width (mm)
695
Depth (mm)
680
Gross volume (ltr)
253
Leg type
Roller castors
Gross weight (kg)
135.74
Net weight (kg)
120

Build

Finish ext/int
304 S/S & 304 S/S
System
Integral

Energy

Climate Class
3
Energy grade
E
EEI
57.5
AEC (kWh)
4876
GWP
3
Min - max temperature (°C)
-1/7
Energy consumption (kWh/24hr)
16.5



Features and benefits

  • Optimum storage and display from the smallest possible footprint
  • Optional fully frameless doors can reduce energy consumption by up to 55%
  • Energy saving LED lighting is brighter, lasts longer and saves you money
  • Additional shelf depth (400mm) delivers increased volume compared to competitor slimline cabinets
  • Extra wide glass end panels increase display visibility
  • Add 60mm to depth for spacer if product is to be wall-sited (required for air circulation - detachable if not wall sited)
  • 2x vertical side mounted full length LED lights. On average these last 10x longer than fluorescent lighting and emit a fraction of the heat output.
  • Energy saving retracting 'Soft Closing Mechanism' Nightblind.
  • Fully removable shelves and supports for ease of cleaning.
  • Made of high quality food safe superior 'brushed' stainless steel finish for easy wipe-clean efficiency.
  • Removable front cover and slide out condensing unit allows easy access for service, minimising down time. Also our After Sales Support is there when you need us: 2 years parts and labour warranty as standard.

Footnotes

  • Allow 60mm spacer if product is wall-sited (required for air circulation). Spacers are detachable if product is not to be wall-sited
  • Delivery to dealer premises/direct to site on route days free of charge. Delivery and installation to ground floor site as priced - see UK price list for conditions
  • Performance complies with M2 classification as prescribed in EN23953-2:2005. M2 refers to product temperatures of no greater than +7°C and no lower than -1°C when loaded in accordance with the standard and recorded under test conditions.
