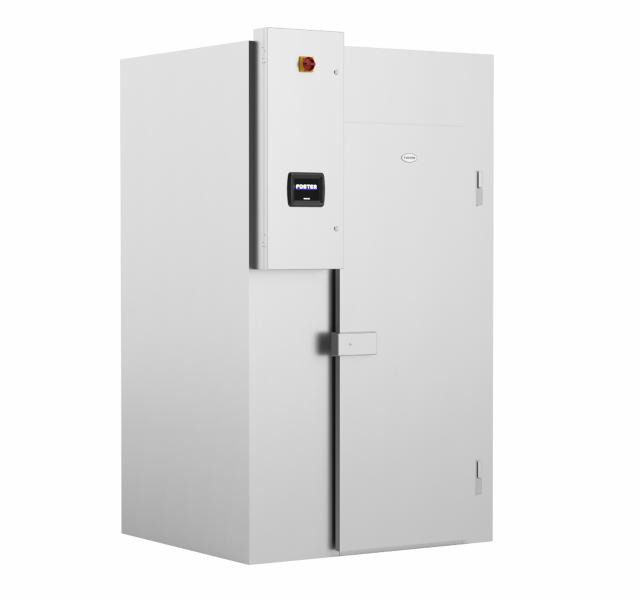

MBCT75W: 75kg Modular Blast Chiller
17-127
Floorless modular blast chiller with 900mm door width
About the product
-
High capacity Modular Blast Chillers from the Refrigeration Experts allow bulk rapid chilling without compromising food safety or quality.
Available to finance with our award-winning interest-free credit and leasing
Learn more about our Blast Chiller range
Specification
Technical
- Refrigerant
- R404a/449a/452a
- Electrical supply
- 230/50/1
- Fuse rating (A)
- 16
- Current (A)
- 4.3
- Power (W)
- 1080
- Refrigeration duty (kW)
- 8850
Dimensions
- Height (mm)
- 2350
- Width (mm)
- 1550
- Depth (mm)
- 1300
- Gross volume (ltr)
- 75
- Chilling capacity (kg)
- 75
- Gross weight (kg)
- 790
- Net weight (kg)
- 749
Build
- Finish ext/int
- White lam & White foodsafe finish
- Section configuration
- Right hinge
- System
- Remote
Energy
- Climate Class
- 5
Features and benefits
- 75kg chilling capacity 70°C to 3°C in less than 90 minutes within specifications. Entry temperature of up to 90°C for chilling
- Supplied less condensing unit for remote application. Separate electrical supply required for condensing unit (3 phase+neutral)
- Doors to the front and rear of the unit allow for loading and unloading from both sides
- Foster Circulair air circulation system ensures uniform chilling whilst protecting the food surface
- Robust modular construction
- Intuitive easy touch control panel - Just press and go with easy to use colour coding to indicate cycle status
- Operator-friendly fans cut-out whenever the blast chiller door is opened
- Supplied with 900mm wide door for easier loading and unloading
Product downloads
Download all available product assets. Find user and service manuals here.
Options
Learn more about product options and accessories.
- Drawer/Door material
-
Roll through white laminate door
Roll through 304 s/s/ door - Hinge
- Left
- RS485 connection for HACCP data logging
- Yes
View our immersive showroom
Footnotes
-
- Anti Condensation heater to control panel recommended where products are installed in an ambient below 15°C e.g. Prep rooms
- All models supplied less condensing unit for remote application. Separate electrical supply required for condensing unit (3 phase + neutral)
