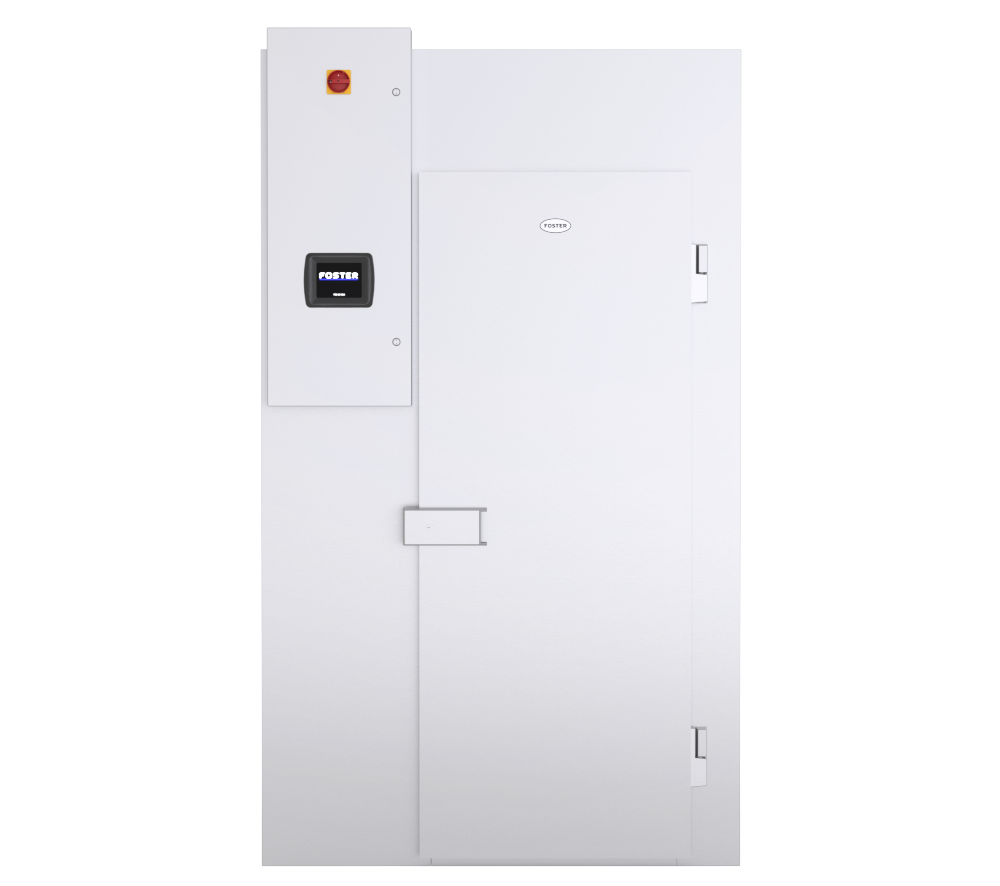

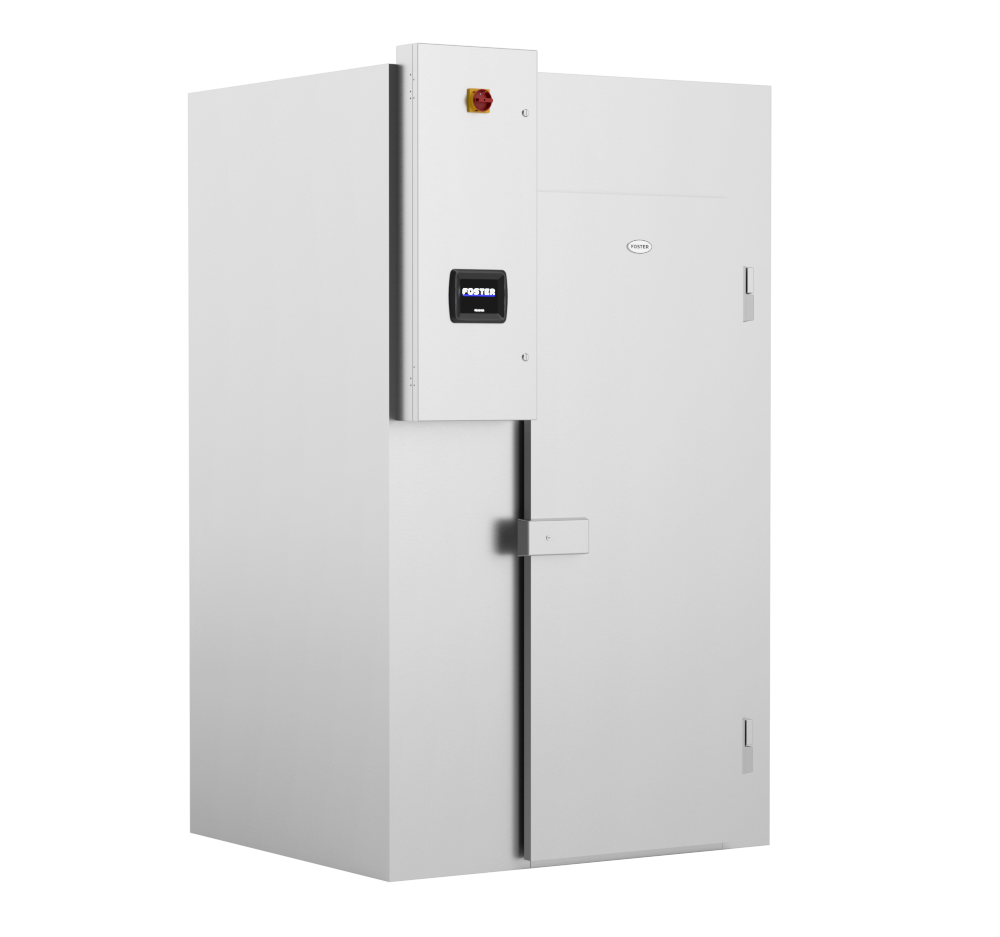

MBCT150W: 150kg Modular Blast Chiller

17-152

Floorless modular blast chiller with 900mm door width

About the product

High capacity Modular Blast Chillers from the Refrigeration Experts allow bulk rapid chilling without compromising food safety or quality.

Available to finance with our award-winning interest-free credit and leasing

Learn more about our Blast Chiller range

Take a look inside the G3

Specification

Technical

Refrigerant
R404a/449a/452a
Electrical supply
230/50/1
Fuse rating (A)
16
Current (A)
4.3
Power (W)
1080
Refrigerant mass (g)
0
Refrigeration duty (kW)
10700
Connected Load (kW)
0.8/4.25

Dimensions

Height (mm)
2350
Width (mm)
1550
Depth (mm)
1330
Gross volume (ltr)
150
Chilling capacity (kg)
150
Gross weight (kg)
790
Net weight (kg)
790

Build

Finish ext/int
White lam with S/S door & White foodsafe finish
Section configuration
Right hinge
System
Remote

Energy

Climate Class
5

Features and benefits

  • 150kg chilling capacity 70°C to 3°C in less than 90 minutes within specifications. Entry temperature of up to 90°C for chilling
  • Supplied less condensing unit for remote application. Separate electrical supply required for condensing unit (3 phase+neutral)
  • Doors to the front and rear of the unit allow for loading and unloading from both sides
  • Foster Circulair air circulation system ensures uniform chilling whilst protecting the food surface
  • Robust modular construction
  • Intuitive easy touch control panel - Just press and go with easy to use colour coding to indicate cycle status
  • Operator-friendly fans cut-out whenever the blast chiller door is opened
  • Supplied with 900mm wide door for easier loading and unloading

Options
Learn more about product options and accessories.

Drawer/Door material
Roll through white laminate door
Roll through 304 s/s/ door
Finish external/internal
Hinge
Left
RS485 connection for HACCP data logging
Yes
  • Anti Condensation heater to control panel recommended where products are installed in an ambient below 15°C e.g. Prep rooms
  • All models supplied less condensing unit for remote application. Separate electrical supply required for condensing unit (3 phase + neutral)
