EP1/2H: 280 Ltr Counter Refrigerator
43-146

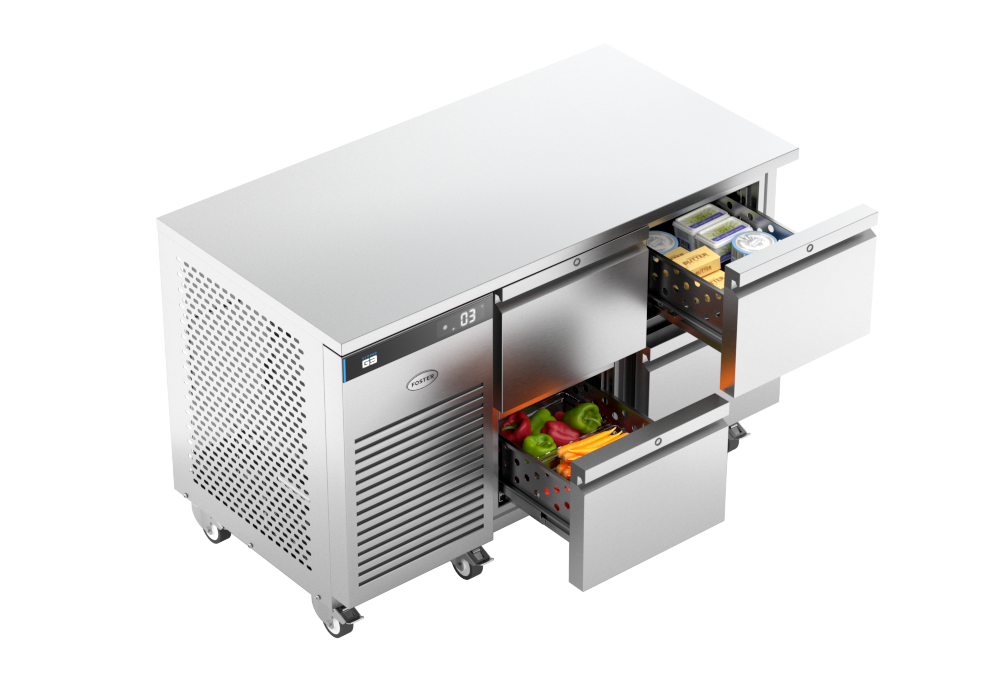

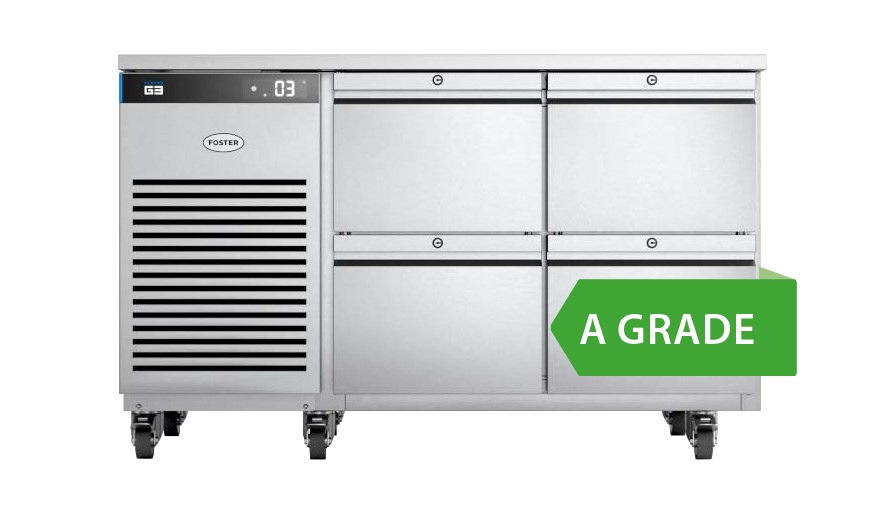

Drawer combination refrigerator counter
About the product
-
With EcoPro G3 Counters you get the best of both worlds: high performance coupled with low energy consumption, from the Refrigeration Experts.
Available to finance with our award-winning interest-free credit and leasing
Learn more about our EcoPro G3 counter range
Take a look inside the G3 counter
Specification
Technical
- Refrigerant
- R290
- Temperature
- Refrigerator +1/+4°C
- Electrical supply
- 230/50/1
- Fuse rating (A)
- 10
- Current (A)
- 0.9
- Power (W)
- 188
- Refrigerant mass (g)
- 110
- Thermal heat rejection (W)
- 200
Dimensions
- Height (mm)
- 865
- Width (mm)
- 1365
- Depth (mm)
- 700
- Gross volume (ltr)
- 280
- Net volume (ltr)
- 172.3
- Leg type
- Braked castors
- GN size
- 1/1
- Gross weight (kg)
- 136
- Net weight (kg)
- 123
Build
- Finish ext/int
- 304 S/S & 304 S/S
- Number of sections
- 2
- Section configuration
- 1/2-1/2
- System
- Integral
- Worktop features
- Standard
Energy
- Climate Class
- 5
- Energy grade
- A
- EEI
- 15.11
- AEC (kWh)
- 314
- GWP
- 3
- Energy consumption (kWh/24hr)
- 0.86
Features and benefits
- A reduced footprint– the more compact design of G3 counters allow them to fit in the tightest of kitchen spaces without losing capacity
- Taking the travel out of food preparation and customised to your needs, G3 counters offer unrivalled flexibility and quality.
- High performance cyclopentane foam maintains thermal efficiency for longer
- Fully floating lock provides durable security and prevents lock breakage if the key is left in
- New and improved ‘Airlines’ ventilation system cools the compressor which reduces running time, saving you energy
- With PureControl, the G3's controller display uses pure LEDs, incorporating InGaN technology, which means it achieves higher resolution, lasts longer - all while using less power. Through the simple addition of a gateway, you’re connectivity-ready
- High quality 304 stainless steel is used as standard on all doors and unit covers for G3 – the gold standard in performance stainless steel – meaning the heaviest usage touchpoints on the product are covered
- Drawers provide increased storage flexibility and easier access to ingredients
Product downloads
Download all available product assets. Find user and service manuals here
Footnotes
-
- Castors not available if product supplied less condensing unit
- 100mm leg option: height ranges from 835 to 865mm (replacement for standard castors). 150mm legs: height ranges from 885 to 935mm
- Adequate airflow must be kept around the counter: 150mm
- Depth with door open is 1113mm
- Any mix of two or three drawer units is possible, as is any combination of drawers and doors. Important - drawer sections are supplied without shelves. Will accommodate pans (optional extra): 1/2 drawers up to 150mm, 1/3 drawers up to 100mm (top drawer max. 70mm on 1/3 drawers)
