EP1/3L: 435 Ltr Counter Freezer

43-180

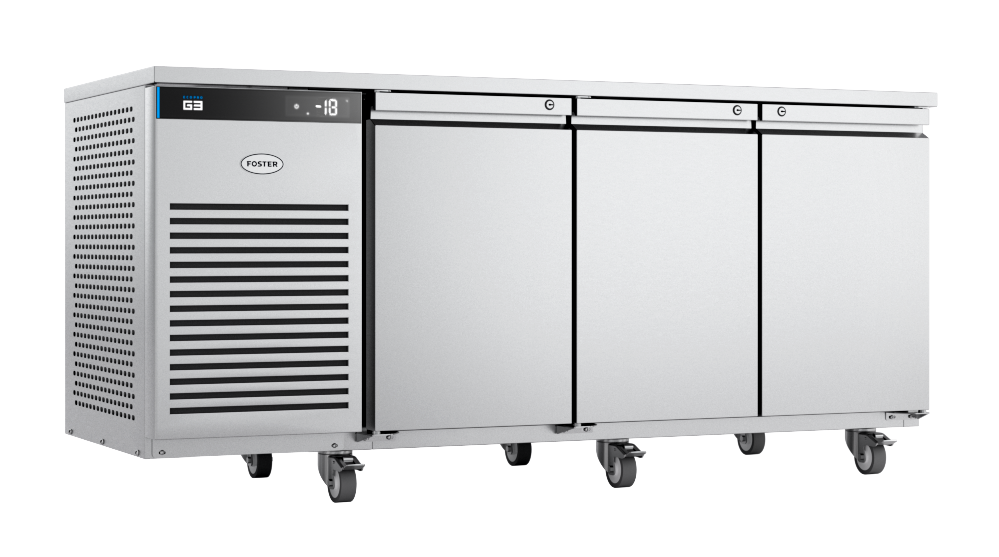

Three door freezer counter

About the product

With EcoPro G3 Counters you get the best of both worlds: high performance coupled with low energy consumption, from the Refrigeration Experts.

Available to finance with our award-winning interest-free credit and leasing

Learn more about our EcoPro G3 counter range

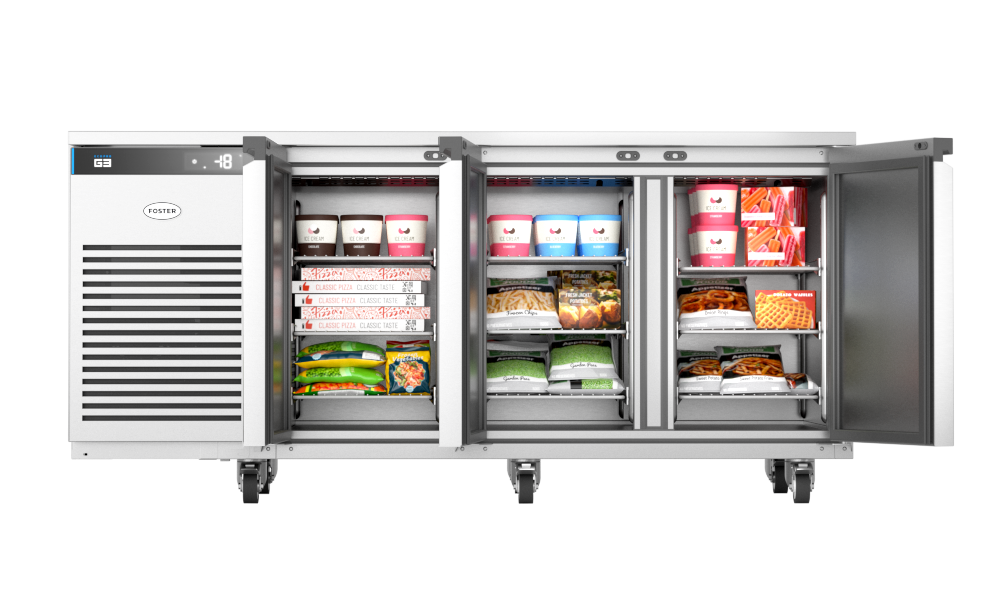

Take a look inside the G3 counter

Specification

Technical

Refrigerant
R290
Temperature
Freezer -18/-21°C
Electrical supply
230/50/1
Fuse rating (A)
10
Current (A)
2.1
Power (W)
480
Refrigerant mass (g)
108
Thermal heat rejection (W)
420

Dimensions

Height (mm)
865
Width (mm)
1815
Depth (mm)
700
Gross volume (ltr)
435
Net volume (ltr)
250.6
Leg type
Braked castors
GN size
1/1
Gross weight (kg)
214
Net weight (kg)
198

Build

Finish ext/int
304 S/S & Alu
Number of sections
3
Section configuration
Left hinge-Left hinge-Right hinge
System
Integral
Worktop features
Standard

Energy

Climate Class
5
Energy grade
F
EEI
94.19
AEC (kWh)
3592
GWP
3
Energy consumption (kWh/24hr)
9.84

Features and benefits

  • A reduced footprint– the more compact design of G3 counters allow them to fit in the tightest of kitchen spaces without losing capacity
  • Taking the travel out of food preparation and customised to your needs, G3 counters offer unrivalled flexibility and quality.
  • High performance cyclopentane foam maintains thermal efficiency for longer
  • Fully floating lock provides durable security and prevents lock breakage if the key is left in
  • New and improved ‘Airlines’ ventilation system cools the compressor which reduces running time, saving you energy
  • With PureControl, the G3's controller display uses pure LEDs, incorporating InGaN technology, which means it achieves higher resolution, lasts longer - all while using less power. Through the simple addition of a gateway, you’re connectivity-ready
  • High quality 304 stainless steel is used as standard on all doors and unit covers for G3 – the gold standard in performance stainless steel – meaning the heaviest usage touchpoints on the product are covered
  • Operates efficiently in ambient temperatures of up to 43°C

Footnotes

  • Castors not available if product supplied less condensing unit
  • 100mm leg option: height ranges from 835 to 865mm (replacement for standard castors). 150mm legs: height ranges from 885 to 935mm
  • Adequate airflow must be kept around the counter: 150mm
  • Depth with door open is 1113mm
