EP1/3H: 435 Ltr Counter Refrigerator

43-212

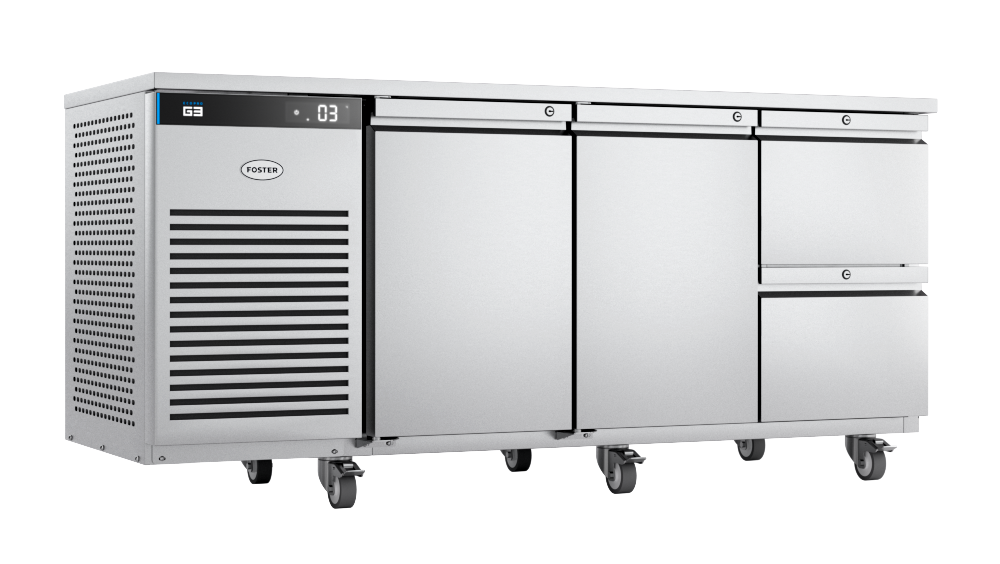

Drawer combination refrigerator counter

About the product

With EcoPro G3 Counters you get the best of both worlds: high performance coupled with low energy consumption, from the Refrigeration Experts.

Available to finance with our award-winning interest-free credit and leasing

Learn more about our EcoPro G3 counter range

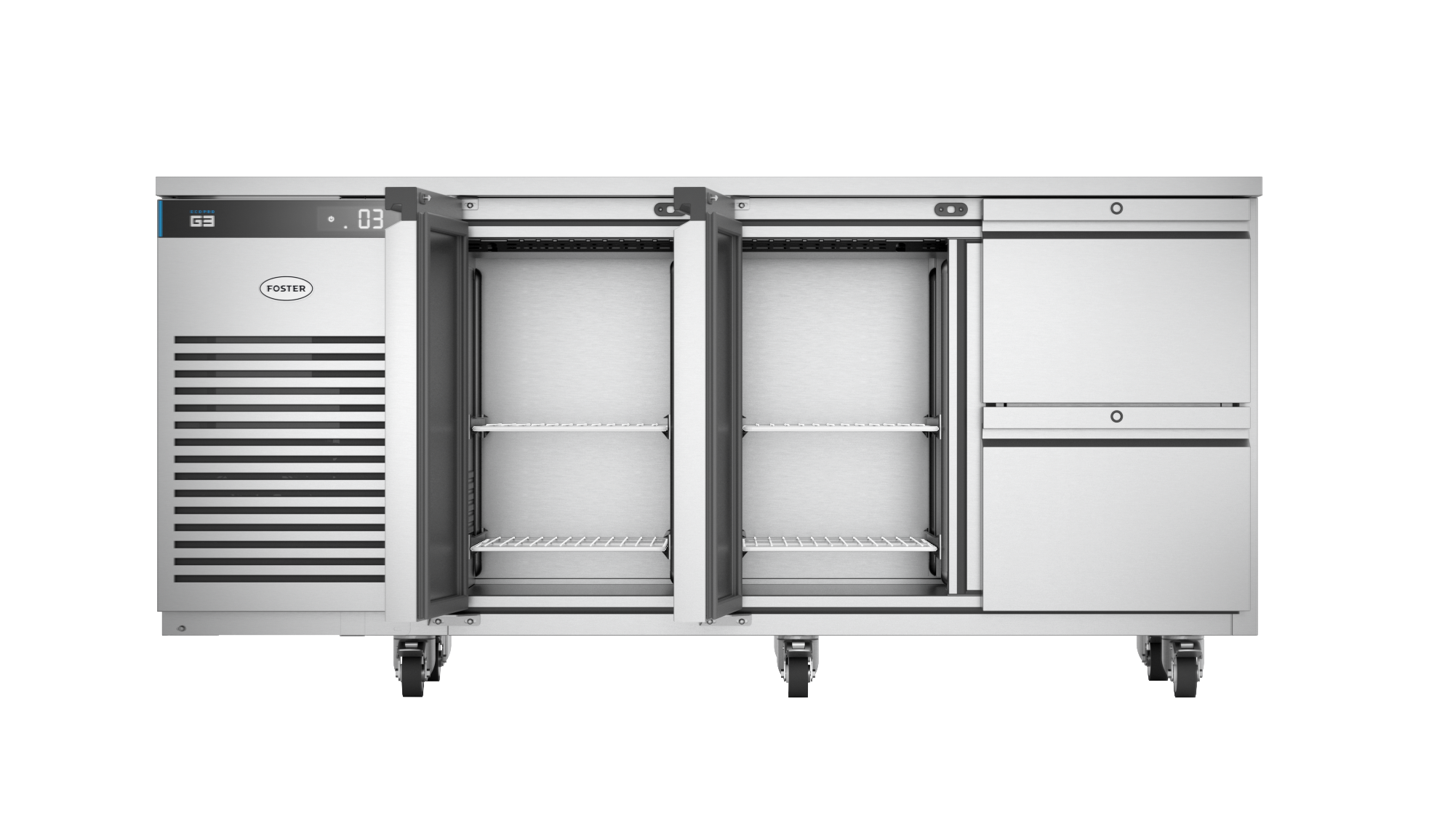

Take a look inside the G3 counter

Specification

Technical

Refrigerant
R290
Temperature
Refrigerator +1/+4°C
Electrical supply
230/50/1
Fuse rating (A)
10
Current (A)
0.8
Power (W)
182
Refrigerant mass (g)
110
Thermal heat rejection (W)
200

Dimensions

Height (mm)
865
Width (mm)
1815
Depth (mm)
700
Gross volume (ltr)
435
Net volume (ltr)
250.6
Leg type
Braked castors
GN size
1/1
Gross weight (kg)
158
Net weight (kg)
143

Build

Finish ext/int
304 S/S & Alu
Number of sections
3
Section configuration
Left hinge-Left hinge-1/2
System
Integral
Worktop features
Standard

Energy

Climate Class
5

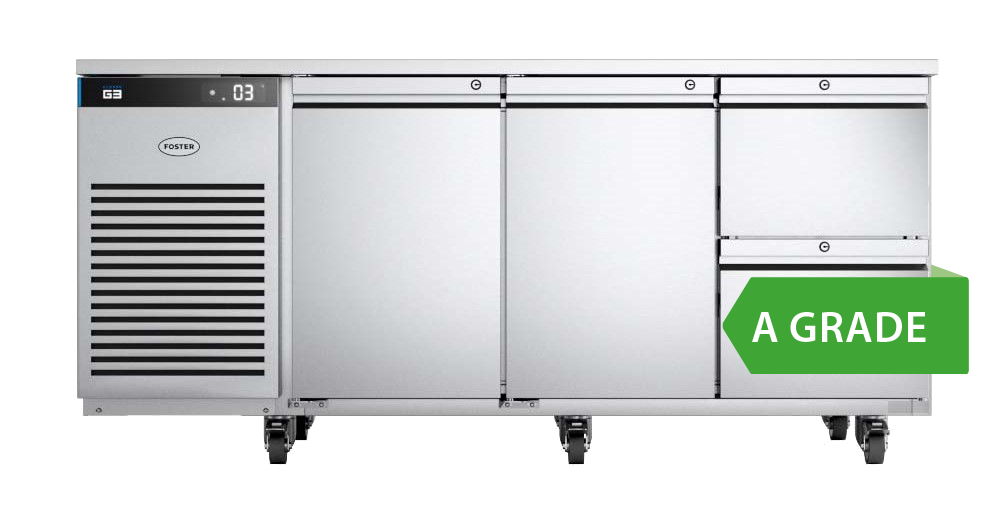

Energy grade
A
EEI
22.39
AEC (kWh)
541.09
GWP
3
Energy consumption (kWh/24hr)
1.48

Features and benefits

  • A reduced footprint– the more compact design of G3 counters allow them to fit in the tightest of kitchen spaces without losing capacity
  • Taking the travel out of food preparation and customised to your needs, G3 counters offer unrivalled flexibility and quality.
  • High performance cyclopentane foam maintains thermal efficiency for longer
  • Fully floating lock provides durable security and prevents lock breakage if the key is left in
  • New and improved ‘Airlines’ ventilation system cools the compressor which reduces running time, saving you energy
  • With PureControl, the G3's controller display uses pure LEDs, incorporating InGaN technology, which means it achieves higher resolution, lasts longer - all while using less power. Through the simple addition of a gateway, you’re connectivity-ready
  • High quality 304 stainless steel is used as standard on all doors and unit covers for G3 – the gold standard in performance stainless steel – meaning the heaviest usage touchpoints on the product are covered

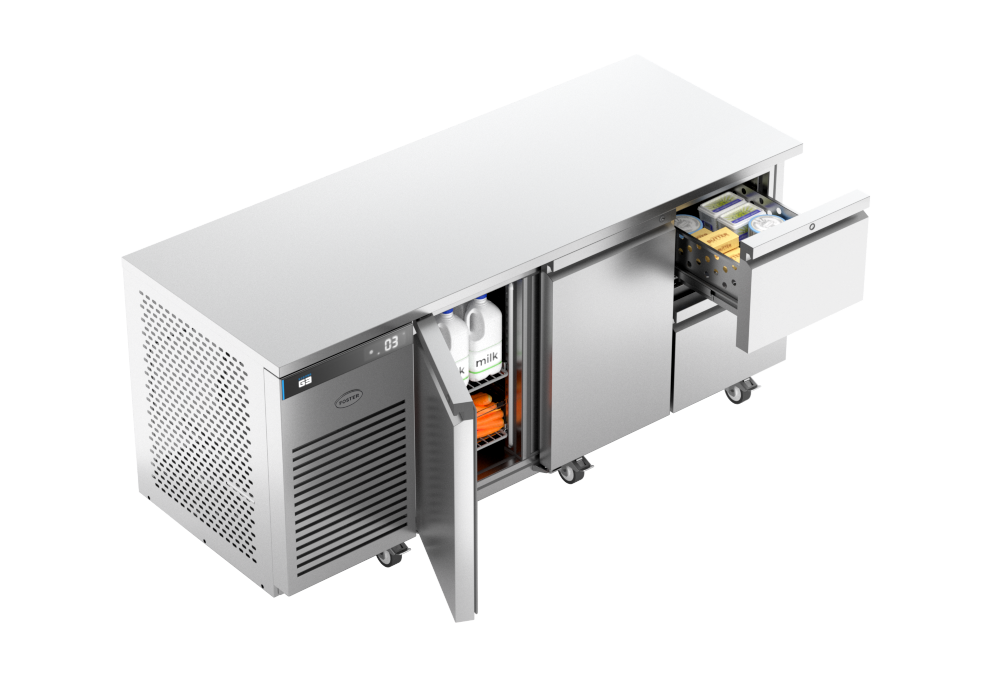

  • Drawers provide increased storage flexibility and easier access to ingredients
  • Operates efficiently in ambient temperatures of up to 43°C

Footnotes

  • Castors not available if product supplied less condensing unit
  • 100mm leg option: height ranges from 835 to 865mm (replacement for standard castors). 150mm legs: height ranges from 885 to 935mm
  • Adequate airflow must be kept around the counter: 150mm
  • Depth with door open is 1113mm
  • Any mix of two or three drawer units is possible, as is any combination of drawers and doors. Important - drawer sections are supplied without shelves. Will accommodate pans (optional extra): 1/2 drawers up to 150mm, 1/3 drawers up to 100mm (top drawer max. 70mm on 1/3 drawers)
