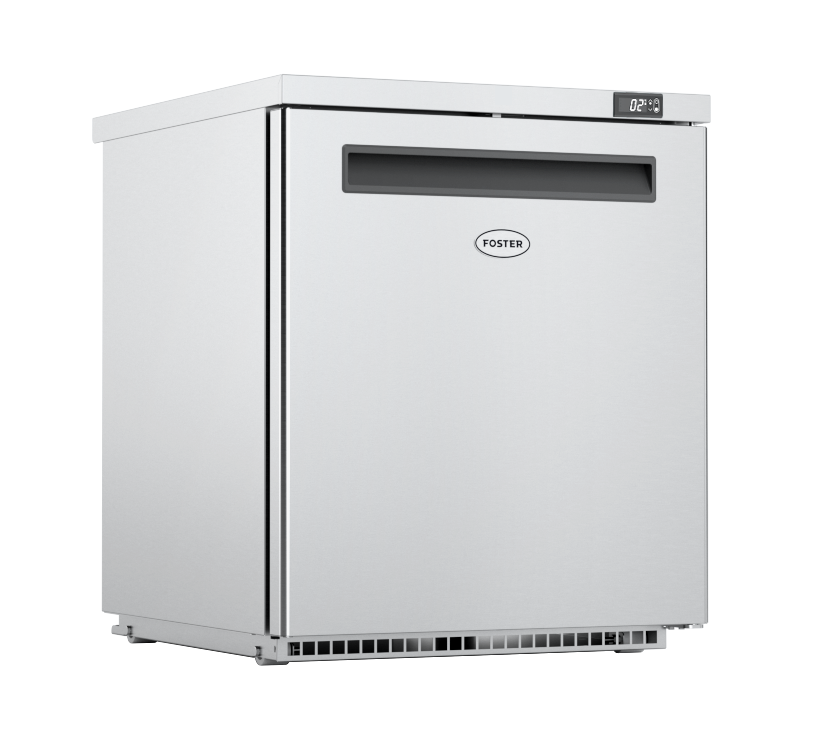

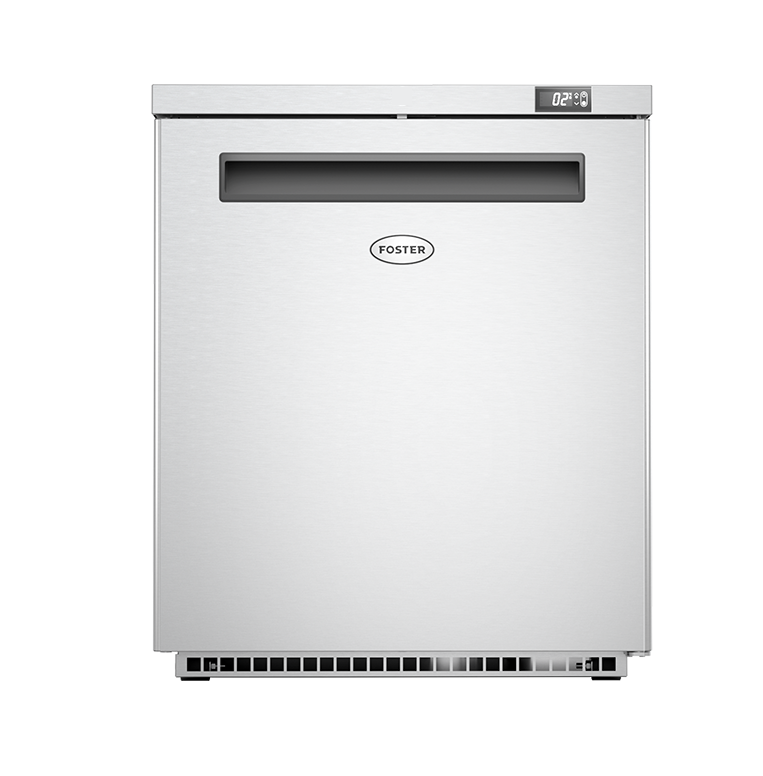

HR200: 200 Ltr Undercounter Cabinet Refrigerator

13-111

Undercounter refrigerator cabinet

About the product

Convenient, practical and tough Undercounter Cabinets offer compact, on-the-spot storage.

Available to finance with our award-winning interest-free credit and leasing

Learn more about our Undercounter Cabinets

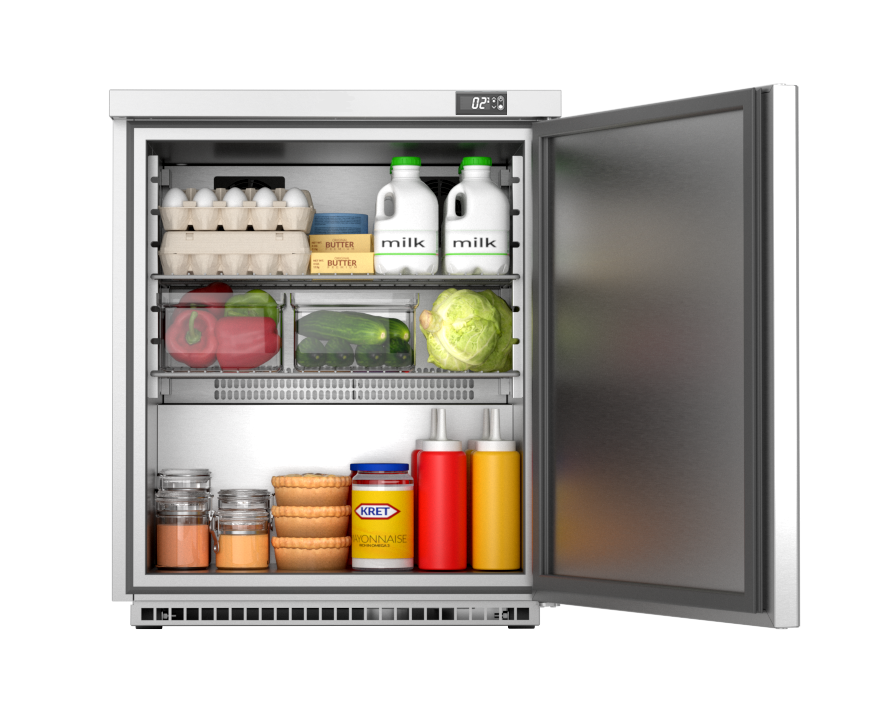

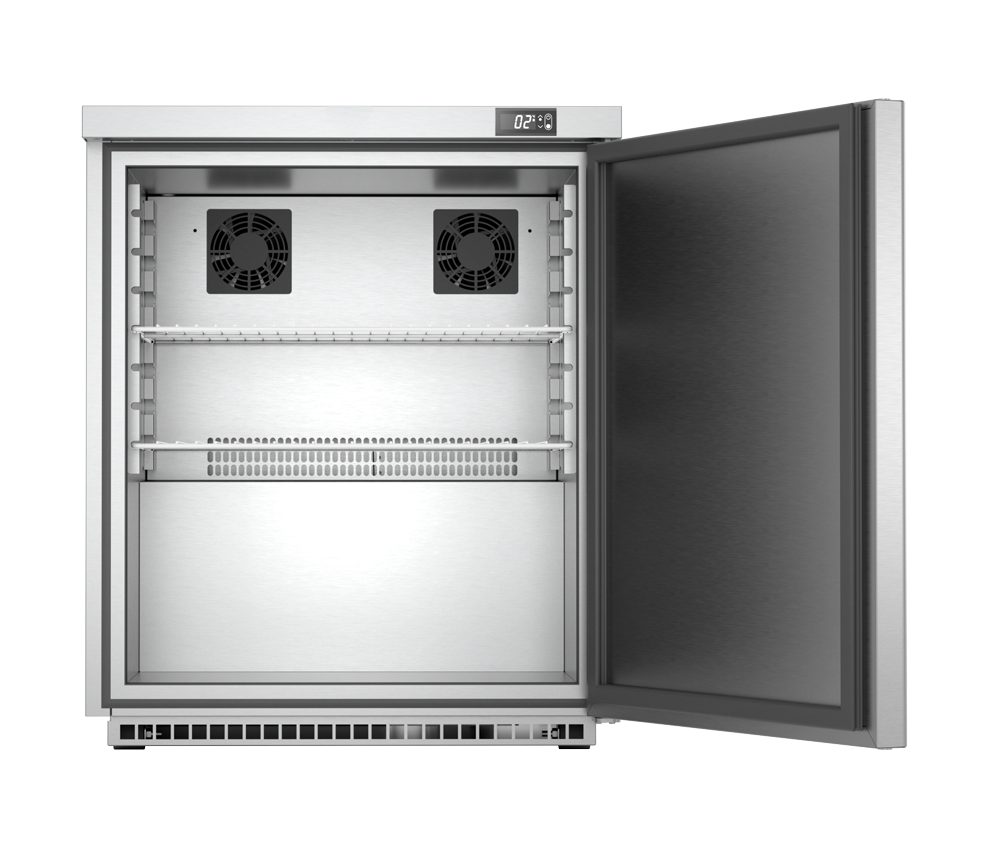

Take a look inside the undercounter

Specification

Technical

Refrigerant
R290
Temperature
Refrigerator +3/+5°C
Electrical supply
230/50/1
Fuse rating (A)
10
Current (A)
1.2
Power (W)
225
Refrigerant mass (g)
116
Thermal heat rejection (W)
240

Dimensions

Height (mm)
824
Width (mm)
684
Depth (mm)
755
Gross volume (ltr)
200
Net volume (ltr)
100.2
Leg type
Roller castors rear, levelling bolts front
Gross weight (kg)
67.5
Net weight (kg)
60.5

Build

Finish ext/int
S/S & Alu
Number of sections
1
Section configuration
Right hinge
System
Integral

Energy

Climate Class
5
Energy grade
A+
EEI
13.68
AEC (kWh)
279.94
GWP
3
Energy consumption (kWh/24hr)
0.77



Features and benefits

  • Front breathing refrigeration system makes this model suitable for use in enclosed areas
  • Front breathing, water cooled refrigeration system makes this model suitable for use in enclosed areas
  • High quality magnetic door gasket
  • Easy to use microprocessor control with digital display for easy visual reference
  • Stainless steel exterior as standard with aluminium interior
  • Supplied on roller castors as standard for ease of movement and positioning
  • Operates in ambient temperatures of up to 40°C (ISO Climate Class 5)

Options
Learn more about product options and accessories.

Drawer/Door material
Glass
Hinge
Left
Section type
Drawer

Footnotes

  • For ventilation, ensure that 50mm clearance is allowed above and around the cabinet
