LR240: 240 Ltr Undercounter Cabinet Freezer

13-125

Reduced width undercounter freezer cabinet

About the product

Convenient, practical and tough Undercounter Cabinets offer compact, on-the-spot storage.

Available to finance with our award-winning interest-free credit and leasing

Learn more about our Undercounter Cabinets

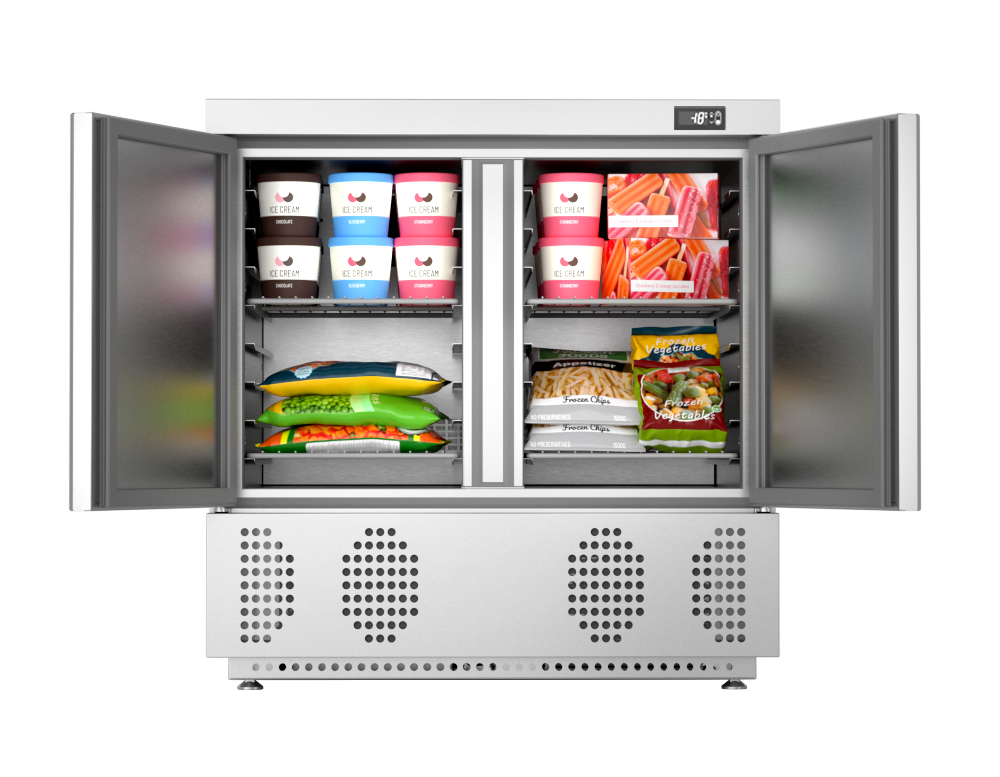

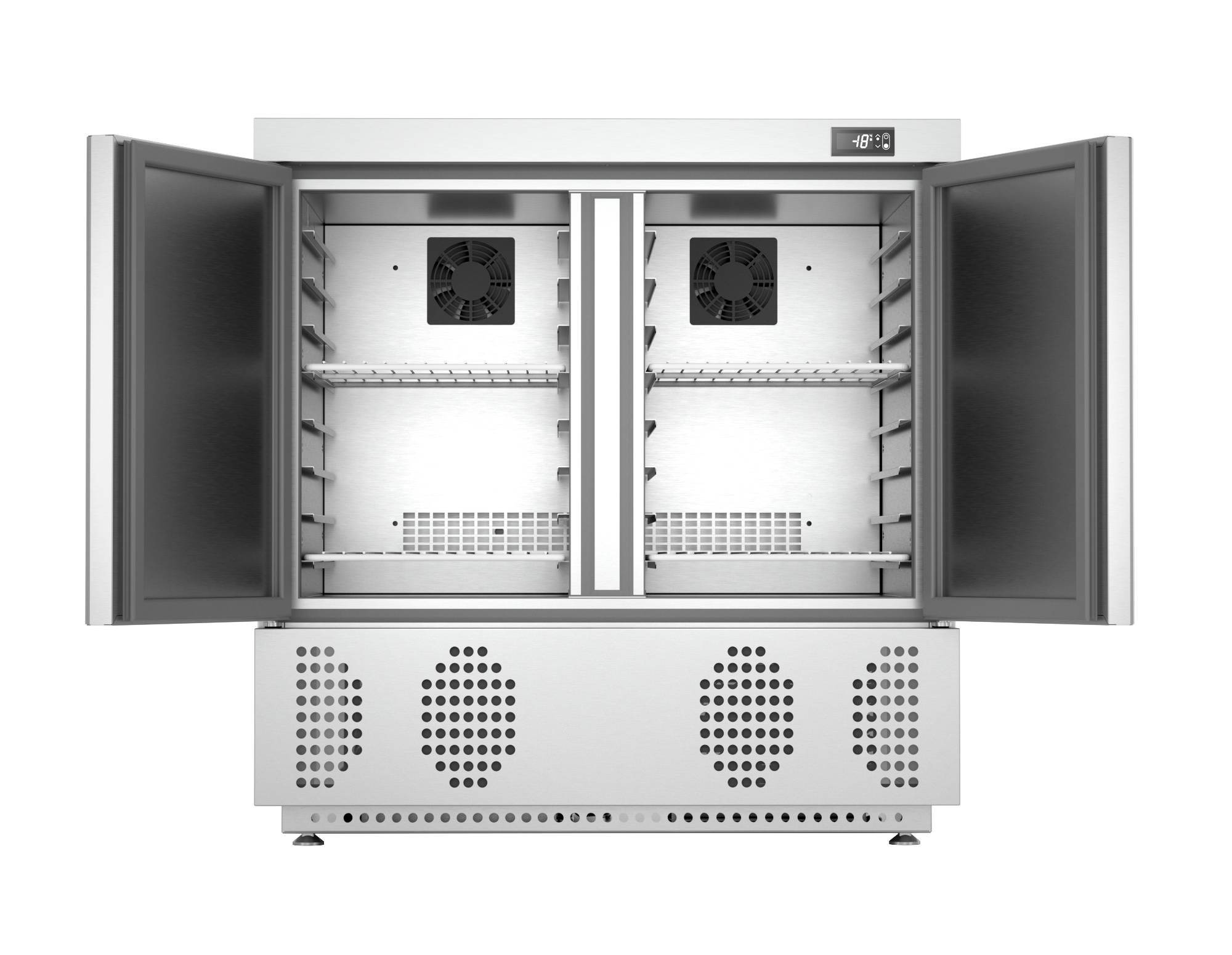

Take a look inside the undercounter

Specification

Technical

Refrigerant
R290
Temperature
Freezer -18/-21°C
Electrical supply
230/50/1
Fuse rating (A)
10
Current (A)
3.4
Power (W)
530
Refrigerant mass (g)
90
Thermal heat rejection (W)
300

Dimensions

Height (mm)
895
Width (mm)
870
Depth (mm)
745
Gross volume (ltr)
240
Net volume (ltr)
133.7
Leg type
Roller castors rear, levelling bolts front
GN size
1/1
Gross weight (kg)
96
Net weight (kg)
83

Build

Finish ext/int
304 S/S & Alu
Number of sections
2
Section configuration
Left hinge,Right hinge
System
Integral

Energy

Climate Class
5
Energy grade
G
EEI
114.64
AEC (kWh)
2729
GWP
3
Energy consumption (kWh/24hr)
7.475



Features and benefits

  • Front breathing refrigeration system makes this model suitable for use in enclosed areas
  • Integrated door lock for added security
  • High quality magnetic door gasket
  • Easy to use microprocessor control with digital display for easy visual reference
  • Stainless steel exterior as standard with aluminium interior
  • GN1/1 undercounter storage on a small footprint
  • Supplied on roller castors as standard for ease of movement and positioning
  • Operates in ambient temperatures of up to 40°C (ISO Climate Class 5)

Footnotes

  • For ventilation, ensure that 50mm clearance is allowed above and around the cabinet
