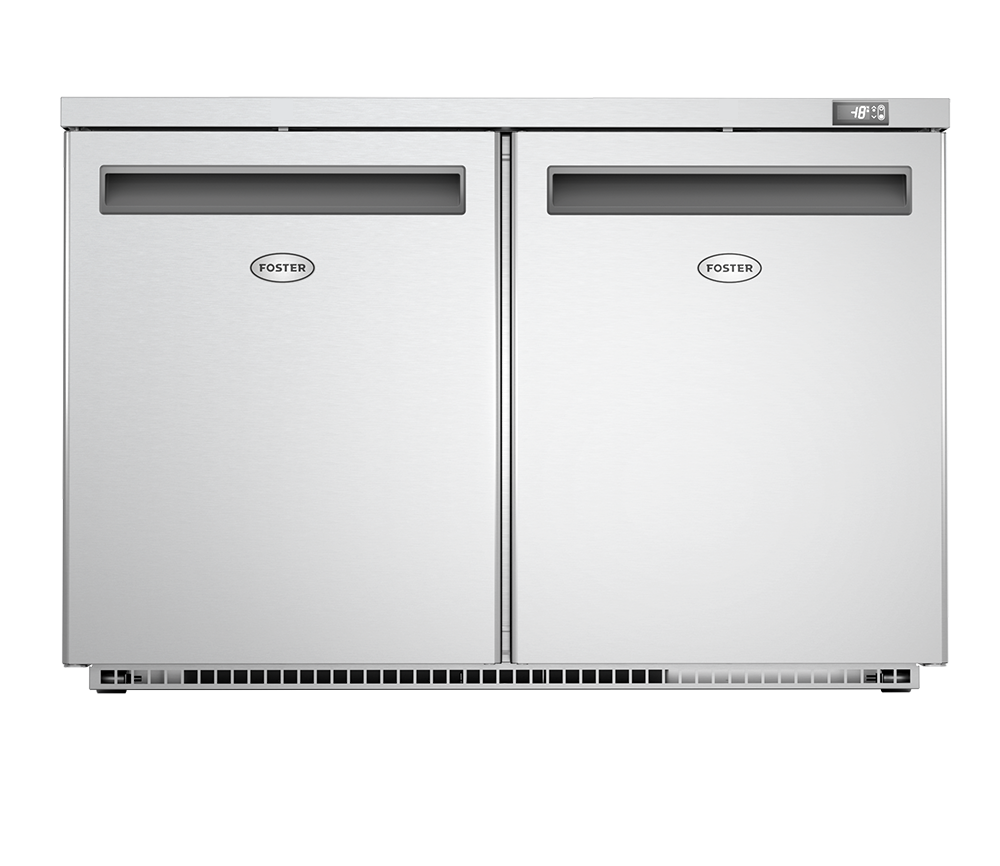

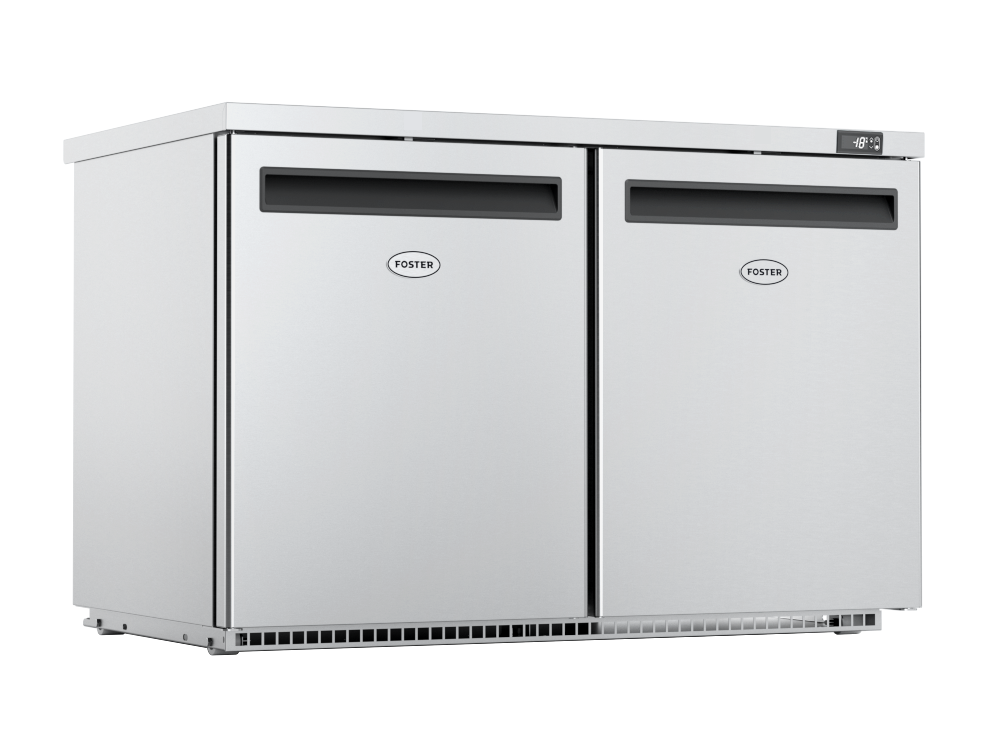

LR360: 360 Ltr Undercounter Cabinet Freezer

13-187

Undercounter freezer cabinet

About the product

Convenient, practical and tough Undercounter Cabinets offer compact, on-the-spot storage.

Available to finance with our award-winning interest-free credit and leasing

Learn more about our Undercounter Cabinets

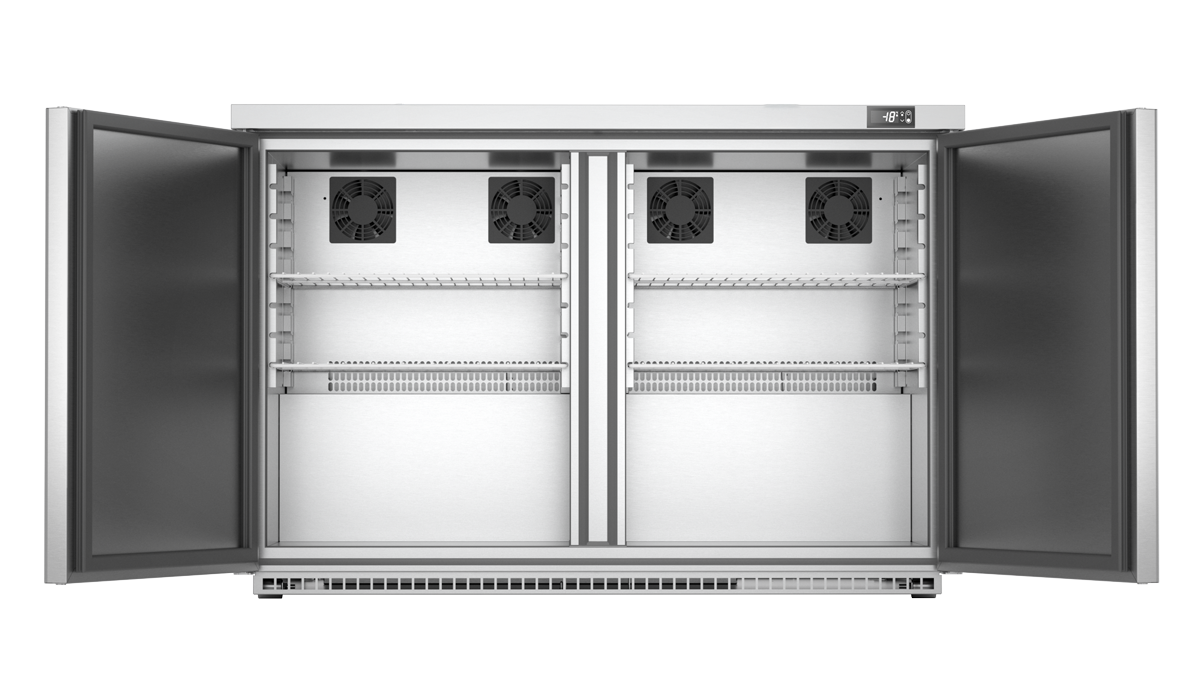

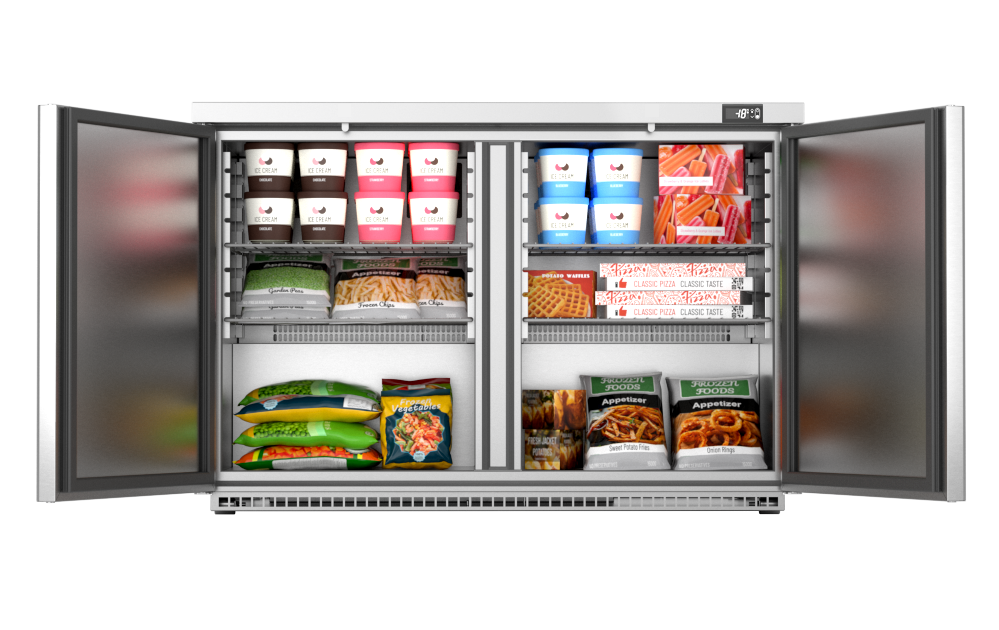

Take a look inside the undercounter

Specification

Technical

Refrigerant
R290
Temperature
Freezer -18/-21°C
Electrical supply
230/50/1
Fuse rating (A)
10
Current (A)
1.7
Power (W)
320
Refrigerant mass (g)
135

Dimensions

Height (mm)
824
Width (mm)
1217
Depth (mm)
755
Gross volume (ltr)
360
Net volume (ltr)
188.9
Leg type
Roller castors rear, levelling bolts front
Gross weight (kg)
105.5
Net weight (kg)
90.5

Build

Finish ext/int
S/S & Alu
Number of sections
2
Section configuration
LeftHinge,RightHinge
System
Integral

Energy

Climate Class
5
Energy grade
D
EEI
69.51
AEC (kWh)
2413
Energy consumption (kWh/24hr)
6.611
GWP
3



Features and benefits

  • Front breathing refrigeration system makes this model suitable for use in enclosed areas
  • Integrated door lock for added security
  • High quality magnetic door gasket
  • Easy to use microprocessor control with digital display for easy visual reference
  • Stainless steel exterior as standard with aluminium interior
  • Supplied on roller castors as standard for ease of movement and positioning
  • Operates in ambient temperatures of up to 40°C (ISO Climate Class 5)

Footnotes

  • For ventilation, ensure that 50mm clearance is allowed above and around the cabinet
